Well Drilling Equipment Features

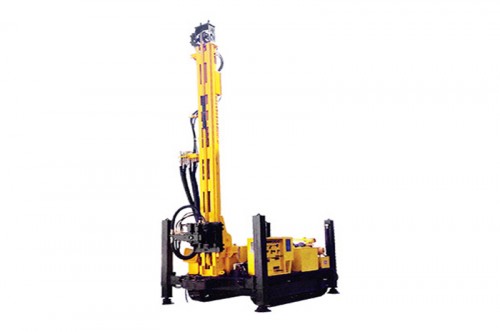

JKS300B Well Drilling Equipment is a new type of efficient and versatile hydraulic rig. It is mainly applicable to the drilling process of water wells, monitor wells, and geothermal wells.
When drilling in the rock layer, the rig adopts DTH hammer for penetration and compressed air for cleaning, with a penetration speed being dozens of times quicker than conventional rotation rigs.
In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions.
Winch can lift stuff upwards of 6m, facilitating installing pipes.
Hydraulic supporters facilitate the rig erection on site without crane.
Smaller size makes it adaptable to various kinds of construction sites.
Well Drilling Equipment Parameters
| Rated Drilling Depth | 300m |
| Borehole Diameter | 105-350mm |
| Engine Power | 92kW |
| Maximum Lifting Force | 15T |
| Small Winch Lifting Force | 1.5T |
| Rotation Torque | 8500N.m |
| Rotation Rate | 0-40/80rpm |
| Feeding Stroke | 3600mm |
| Lifting Speed | 0-18m/min |
| Grade Ability | 15° |
| Hydraulic Generator (optional) | 24kW/380V |
| Flow of Foam Pump (optional) | 20L/min |
| Dimension (L x W x H) | 6300mm x 2000mm x 2300mm |
| Working Size (W x H) | 3100mm x 6900mm |
| Weight | 8.5T |
