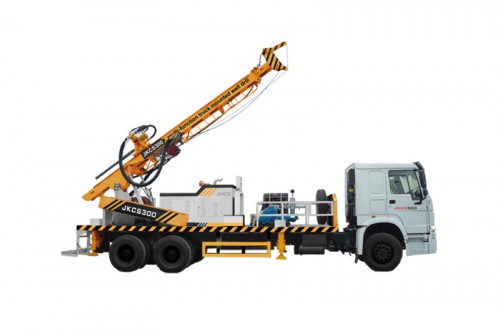

JKCS300 Truck Mounted Well Drilling Rig
Product details
Truck Mounted Well Drilling Rig Features
JKCS300 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit mining, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
Truck Mounted Drilling Rig parameters
| Specifications of JKCS300 Versatile Well Drilling Rig | |
| Borehole Diameter | φ105-350mm |
| Borehole Drilling Depth | 300m |
| Working Air Pressure | 1.05-3.05MPa |
| Air Consumption | 16-35m³/min |
| Rod Diameter | φ89mm, φ102mm, φ114mm |
| Rod Length | 3m / 4.5m |
| Grade Ability | 15° |
| Winch System ( standard main winch & optional tooling winch) | |
| Lifting Force | 15t |
| Lifting Height | 8m |
| Feed System | |
| Axial Pressure | ±6t |
| Rotation Torque | 4500N.m |
| 8500N.m | |
| Rotation Rate | 0-80rpm |
| 0-160rpm | |
| Weight | 8t (excluding vehicle) |
| Dimension (L x W x H) | 10500mm x 2480mm x 3050mm (transport) |
| Working Size (L x W x H) | 11000mm x 2480mm x 7147mm |
If you are finding Truck Mounted Drilling Rig Factory, we will be your best choose! We are dedicated to providing our customers with high quality and high–tech products.
