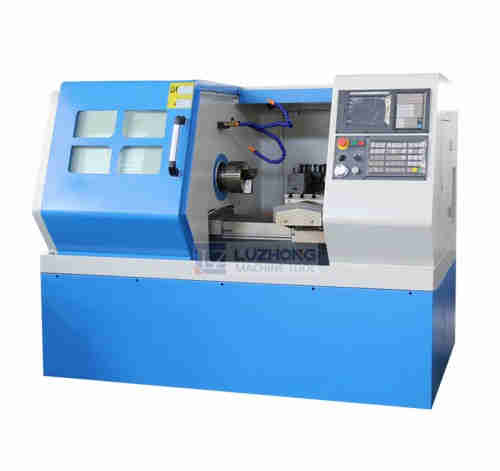

H36 Linear Guide Rail CNC Lathe
CNC Lathe Features:
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,Optional homemade spindle
Higher rigidity cast iron
Application:
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobie,motorcycle,bearoings and so on.
Product main technical specifications:
|
Specifications |
Units |
H36 |
|
Max.swing over bed |
mm |
360 |
|
Max.swing over cross slide |
mm |
110 |
|
Max.processing length |
mm |
250 |
|
X/Z axis travel |
mm |
340/250 |
|
Spindle nose |
|
A2-5 |
|
Spindle bore |
mm |
48 |
|
Bar capacity |
mm |
38 |
|
Max. spindle speed |
rpm |
2500/4000 |
|
Chuck size |
mm |
6 |
|
Spindle motor |
KW |
4 |
|
X/Z axis repeatability |
mm |
±0.003 |
|
X/Z axis feed motor torque |
N.m |
X:4 Z:4 |
|
X/Z axis rapid traverse |
m/min |
15/15 |
|
Tool post type |
|
4 gang type tool post |
|
Cutting tool shape size |
mm |
20x20 |
|
Guide form |
|
Linear guide rail |
|
Total power capacity |
KVA |
8 |
|
Machine dimension(LxWxH) |
mm |
2000/1400x1580 |
|
Net weight |
kg |
1500 |
