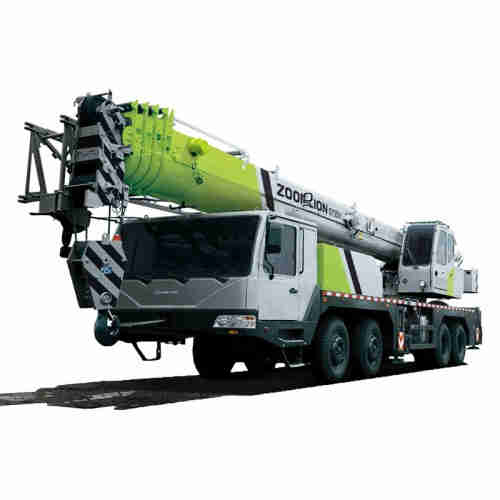

Zoomlion 50 ton mobile lifting qy55v multifunctional crane truck
Visits: 127
    • Price: $ 134,000.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: ZOOMLION
    Specifications: Max. Lifting Height: 59.5m Warranty: 1 year Feature: Truck C
    Type New
    Date: 09-04-2020
    Business type: Agent
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 10 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     https://www.alibaba.com/product-detail/2020-new-design-zoomlion-50-ton_62538055731.html?spm=a2747.manage.0.0.661171d2XlVOy1

    Parament of ZOOMLION  50ton Truck Crane  QY55V532.2 Telescopic Boom Crane

    Item Unit Value Remarks
    Working    performance Max.    rated lifting capacity kg 55000
    Max.    load moment of basic boom kN.m 2009
    Max.    load moment of main boom(fully extended) kN.m 1050
    Max.    load moment of basic boom m 12.6
    Max.    lifting height of main boom m 43.6 These    parameters do not include deflection of main boom and jib
    Max.    lifting height of jib m 59.5
    Working    speeds               Max.    hoist rope speed(Main winch) m/min 120
    Max.    hoist rope speed(Auxiliary winch) m/min 120
    Boom    demrricking up time s 50
    Boom    demrricking up time s 95
    Slewing  speed r/min 0-2.2
    Driving Max.    driving  speed km/h 76
    Max.    gradeability % 40
    Turning    diameter m ≤24
    Min.  ground clearance mm 260
    Oil    consumption per hundred kilometers L 43
    Mass Deadweight    in driving condition kg 42000
    Complete    vehicle kerb mass kg 41870
    Front    axle load kg 16000
    Rear    axle load kg 26000
    Dimension Overall    dimensions(L×W×H) mm 13700×2800×3650
    Longitudinal    distance between outriggers m 5.92
    Transversal    distance between outriggers m Fully    extended:7.1,
         Intermediately    extended:4.8
    Tail    slewing radius mm 3900
    Main    boom length m 11.4    - 43.0
    Main    boom angle ° -2    - 80
    jib    length m 9.5,16.0
    Offset ° 0,30
