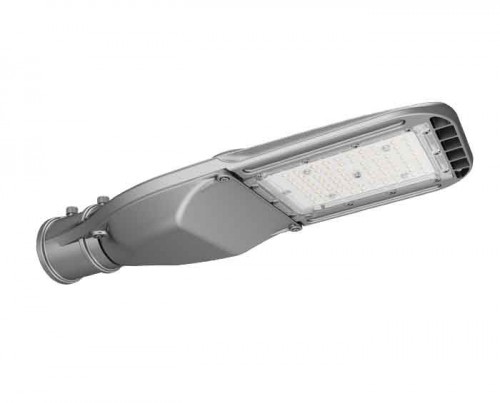

Smart design ENEC 50W ECONOMICAL LED ROAD LIGHT
Series Kmini LED Street Light
Model：
ZGSM-LD50Kmini
Economical LED Street Light Application：
Street | Road | Highway | Parking lot | Bridge | Path
European Style LED Street Light KEY FEATURES
● Wide power range: 20W~50W.
● Special circuit design, single LED's damage won't affect others' normal work.
● Smart design, low transportation costs.
● Smooth body would greatly diminish dust accumulation and bird droppings heap up.
● High Lumen output up to 160lm/ w with high quality LED chips.
● Multiple lighting control options are available, e.g. 1-10V, photocell.
● Designed to last at least 100, 000 hours at L70.
We also provide Tool Less LED Street Lights, UL Certified LED High Bay Light, 120w led high bay light, Tennis court led flood light and soon.
SPECIFICATIONS
|
Specifications |
|
|
Model |
ZGSM-LD50Kmini |
|
LED Brand |
LUMILEDS® LUXEON 3030/ 5050 |
|
Driver Brand |
Inventronics |
|
Norminal Wattage |
50W |
|
LED Chip Quantity |
3030: 80pcs 5050: 28pcs |
|
Input Voltage |
100-240/277VAC |
|
Power Efficiency |
>90% |
|
Power Factor |
>0.95 |
|
Lamp Rated Luminous Efficiency |
3030: 142 lm /w 5050: 150 lm /w |
|
Lamp Rated Lumen output |
3030: 7100 lm 5050: 7500 lm (Lumen tolerance +/- 5%) |
|
Color Rendering Index |
70(80 optional) |
|
Color Temperature |
3000K or 4000K or 5000K or 5700K |
|
Photometric Type |
3030: Type II Medium 5050: Type II Medium BLS |
|
Optimal Operating Temperature |
25℃ |
|
Storage Temperatures |
-40°C~50°C |
|
Working Environment |
Between-40°C~+50°C, 10%~90%RH |
|
Total Harmonic Distortion |
< 10% |
|
Lumen Maintenance |
> 100,000 hours -L70, @25 ºC (77 ºF) |
|
Wind Index |
Force 12 |
|
Body and Shell Materials |
Die-cast aluminum; PC Lens |
|
Pole Fitter Diameter |
60mm ( 50mm optional) |
|
Rating |
IP66 IK10 |
|
Protection |
Class I |
|
SPD |
10KV (20KV optional) |
|
Certification |
CE, ENEC,CB ROHS,LM80,LM79,IP66 IK10,ISTMT |
|
Dimming Options |
1-10V |
|
Control Options |
Photocell or Smart control |
|
Color Options |
Deep grey |
|
Warranty |
5 years |
