Product details

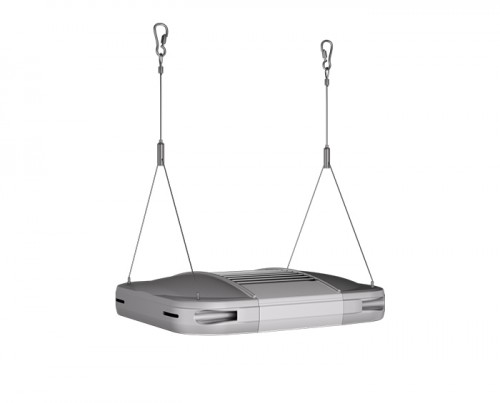

SUSPENDED 80W MODULAR DESIGN LED LOW BAY LIGHTING
Visits: 184
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: LED LOW Bay Light
    Type New
    Date: 13-04-2020
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 100000 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     SUSPENDED 80W MODULAR DESIGN LED LOW BAY LIGHTING

    Series H4 LED LOW Bay Light

    Model：

    ZGSM-GCD80H4

    Application：

    Warehouse | Workshop | Garage | Billboard | Area | Building led high bay lighting

    KEY FEATURES

    1. Wide power range: 40W~360W.

    2. Special circuit design, single LED’s damage won't affect others' normal work.

    3. Modular design for easy installation, replacement and maintenance.

    4. High Lumen output up to 165lm/ w with high quality LED chips.

    5. Various applications with different mounting Accessories.

    6. Multiple lighting control options are available, e.g. DALI, 1-10V, motion sensor.

    7. Designed to last at least 100, 000 hours at L70.

    8. Multiple lighting distributions are available.

    We also provide led gas station canopy lights, UL Certified LED High Bay Light, Garage led high bay light, 300w led flood light and soon.

    ZGSM is a hi-tech and private Enterprise devoted to R&D, producing and selling of Economical LED Street Light, Building led high bay light, Lithium Battery Solar Power System and so on. As

    SPECIFICATIONS

    Model

    ZGSM-GCD80H4

    LED Brand

    Lumileds LUXEON 3030/5050

    Driver Brand

    Meanwell HLG series

    Norminal Wattage

    80W

    LED Module Quantity

    2 modules

    Input Voltage

    100-240/277/347/480VAC

    Power Efficiency

    >90%

    Power Factor

    >0.95

    Lamp Rated Luminous Efficiency

    140-165 lm/w

    Lamp Rated Lumen output

    11200-13200 lm (Lumen tolerance +/- 5%)

    Color Rendering Index

    70 (80 is optional)

    Color Temperature

    3000K, 4000K, 5000K or 5700K

    Photometric Type

    60,90,110 degrees

    Optimal Operating Temperature

    25℃

    Storage Temperatures

    -40°C~50°C

    Working Environment

    Between-40°C~+50°C, 10%~90%RH

    Total Harmonic Distortion

    < 10%

    Lumen Maintenance

    > 100,000 hours -L70, @25 ºC (77 ºF)

    Body

    Die-cast aluminum Housing

    Cover

    PC lens

    Rating

    IP66 IK10

    Protection

    Class I ( Class II optional)
