POE Injector For IP Cameras PT-PSE100GF
Visits: 121
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: PROCET
    Specifications: POE Injector For IP Cameras
    Type New
    Date: 30-04-2020
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 10000 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

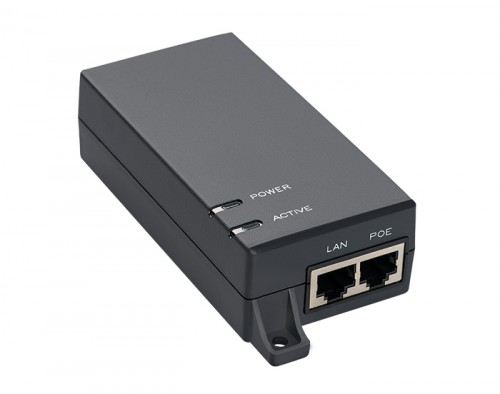

     PT-PSE100GF is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32A amp.

    Designed for the AF powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3af devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

    We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

    Enclosed in an IP40 fire retardant plastic case, designed for indoor use, installation with Wall-mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

    Can be extended with the PoE Injector for wireless APs PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

    We are PoE Injector supplier and more information you can view here

    Parameter

    Description

    Key Features



    Part Number

    PT-PSE100GF

    Ports   condition

    LAN Port*1,AC Input   Port*1, PoE Output Port*1

    Regulatory   Compliance

    IEEE802.3af
    RoHS Compliance
    WEEE Compliance

    Pass Through   Data Rates

    10/100/1000 Mbps

    PoE Injector Output

    Pin Assignment and Polarity:
    4/5 (+), 7/8 (–)
    Output Power Voltage: 48Vdc
    User Port Power:15.4W Guaranteen

    Input

    Input   Voltage: 100-240Vac
    Frequency: 50/60Hz Typ

    Working   Environment

    Operating   Temperature: 0℃ to 40℃
    Operating Humidity: 20% to 80%, non-condensation
    Storage Temperature: -20℃ to 70℃
    Storage Humidity: 10% to 90%, non-condensation
    Operating Altitude: up to 2000meters

    AC Surge   Protection

    Line-Earth   1.2/50us (8/20us): 6KV
    Line-Line 1.2/50us (8/20us): 4KV

    Mechanical   Characteristics

    Case: plastic
    Color: Black
    Mounting: Wall-mounted
    IP Rated: IP40
    Connectors: Shielded RJ-45*2
    Size: 134 X 56X 33mm
    Weight:170g(0.37lb)

    LED Indicator

    Power   Indicator: Green
    PoE Load Indicator: Green

    Warranty

    2 year

    Safety   Approvals

    CE,   FCC
