    Product details

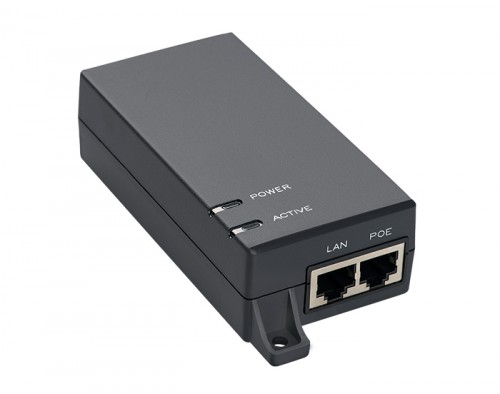

     PT-PSE100GFN is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32 amp.

    PoE Injector manufacturer:Creative Lianjie Network Technology

    Designed for the AT powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at devices.

    We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

    Enclosed in an IP40 fire retardant plastic case, designed for indoor use installation with Wall-mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

    can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

    We are PoE Injector supplier and more information you can view here



    Parameter

    PoE Injector for door locks Description

    Key Features

    1. Output: 48Vdc, 320mA, 15.4W

    2. Transmission Rate: 10/100/1000Mbps

    3. Power Pin: 4/5(+),7/8(-)

    Part Number

    PT-PSE100GFN

    Ports   condition

    LAN Port*1, AC Input   Port*1, PoE Output Port*1

    Regulatory   Compliance


     IEEE802.3af
     RoHS Compliance
     WEEE Compliance

    Pass Through   Data Rates

    10/100/1000 Mbps

    Output

    Pin Assignment and Polarity:
    4/5 (+), 7/8 (–)

    Output Power Voltage: 48Vdc

    User Port Power: 30W Guaranteen

    Input

    Input   Voltage: 100-240Vac
    Frequency: 50/60Hz Typ

    Working   Environment

    Operating   Temperature: 0℃ to 40℃
    Operating Humidity: 20% to 80%, non-condensation
    Storage Temperature: -20℃ to 70℃
    Storage Humidity: 10% to 90%, non-condensation
    Operating Altitude: up to 2000meters

    AC Surge   Protection

    Line-Earth   1.2/50us (8/20us): 2KV
    Line-Line 1.2/50us (8/20us): 1KV

    Mechanical   Characteristics

    Case: plastic

    Color: Black

    Mounting:Wall-mounted
    IP Rated: IP40
    Connectors: Shielded RJ-45*2
    Size: 135mmX 95mmX 35.4mm
    Weight: 400g（0.88lb）

    LED Indicator

    Power   Indicator: Green
    PoE Load Indicator: Green

    Warranty

    2 year

    Safety   Approvals

    CE,   FCC
