Product details

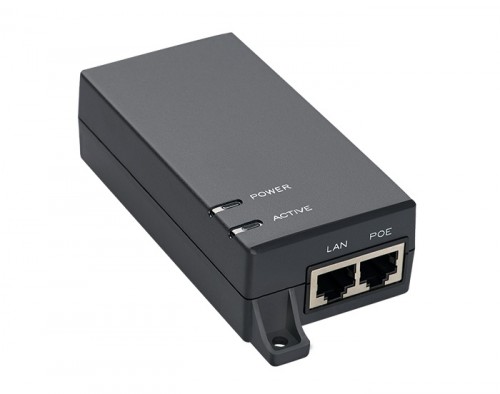

POE Injector For Pos PT-PSE100G-24
Visits: 125
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: PROCET
    Specifications: outdoor PoE Injector
    Type New
    Date: 30-04-2020
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 10000 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     PT-PSE100G-24 is a single port midspan Injector with 2 Pair PoE up to 26 watts of power at 24 VDC at 1100 amp.



    Designed for the outdoor PoE Injector, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 0/100/1000Mbps of data rates. Fully comply with IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.



    Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with wall-mounted. It operates with a wide input voltage of 100-240 VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

    Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

    The POE Injector are Enclosed in an IP40 fire retardant plastic case, designed for indoor use, installation with Wall-mounted.

    We are PoE Injector supplier and more information you can view here

    We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

    high quality PoE Injector Specifications

    Parameter

    Description

    Key Features

    24VDC   output voltage
        Wall-mounted

    Part Number

    PT-PSE100G-24

    Ports   condition

    LAN Port*1, AC Input   Port*1, PoE Output Port*1

    Regulatory   Compliance


        IEEE802.3af
        RoHS Compliance
        WEEE Compliance

    Pass Through   Data Rates

    10/100/1000 Mbps

    Output

    Pin   Assignment and Polarity:
        4/5 (+), 7/8 (–)
        Output Power Voltage: 24Vdc
        User Port Power: 26W Guaranteen

    Input

    AC   Input Voltage: 100 to 240 Vac
        Frequency: 47 to 63Hz (50/60Hz Typ.)
        DC Input Current: 1A

    Working   Environment

    Operating   Temperature: 0℃ to 40℃
        Operating Humidity: 20% to 80%, non-condensation
        Storage Temperature: -20℃ to 70℃
        Storage Humidity: 10% to 90%, non-condensation
        Operating Altitude: up to 2000meters

    PoE Surge   Protection

    Protected   line: 1,2,3,4,5,6,7,8
        Common mode surge protection(10/700us): 6KV
        Differential mode surge protection (10/700us): 1.5KV

    AC Surge   Protection

    Line-Earth   1.2/50us (8/20us): 2KV
        Line-Line 1.2/50us (8/20us): 1KV

    Mechanical   Characteristics

    Case:   Plastic
        Color: Black
        Mounting: Wall-mounted
        IP Rated: IP40
        Connectors: Shielded RJ-45*2
        Size: 134mmX 56mmX 33mm
        Weight: 150g（5.3oz）

    LED Indicator

    Power   Indicator : Green
        PoE Load Indicator : Green

    Warranty

    2 year

    Safety   Approvals

    CE/FCC
