You are here »Home»Products »Electrical Equipment & Supplies»Other accessories»poe adapter PT-PSE100GFN-24
Product details
poe adapter PT-PSE100GFN-24
Visits: 112
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: PROCET
    Specifications: poe adapter
    Type New
    Date: 30-04-2020
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 10000 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

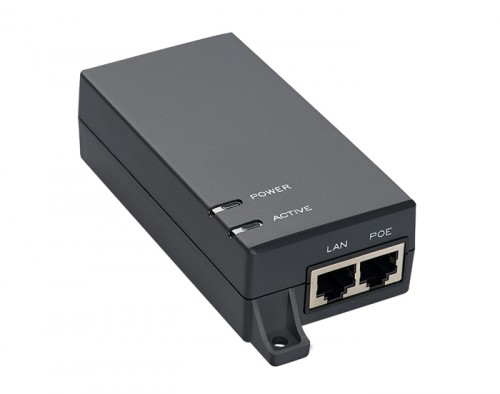

     poe adapter PT-PSE100GFN-24

    PT-PSE100GFN-24 is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 24 VDC at 0.65 amp.

    We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

    Designed for the PoE powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100Mbps of data rates. Fully comply with IEEE802.3af devices. It will directly power PD without detection.

    poe adapter for sale:Creative Lianjie Network Technology

    Enclosed in an plastic case. It operates with input voltage of 100-240 VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

    We are PoE Injector supplier and more information you can view here



    china poe adapter Specifications

    Parameter

    Description

    Key Features

    Passive
        15.4W
        CE, FCC

    Part Number

    PT-PSE100GFN-24

    Ports   condition

    LAN Port*1, AC Input   Port*1, PoE Output Port*1

    Regulatory   Compliance


        IEEE802.3af
        RoHS Compliance
        WEEE Compliance

    Pass Through   Data Rates

    10/100/1000 Mbps

    Output

    Pin Assignment and Polarity:
        4/5 (+), 7/8 (–)
        Output Power Voltage: 24Vdc
        User Port Power: 15.4W Guaranteen

    Input

    AC   Input Voltage: 100 to 240 Vac
        AC Input Current: 0.5A
        Frequency:50-60Hz

    Working   Environment

    Operating Temperature: 0℃ to 40℃
        Operating Humidity: 20% to 80%, non-condensation
        Storage Temperature: -20℃ to 70℃
        Storage Humidity: 10% to 90%, non-condensation
        Operating Altitude: up to 2000meters

    AC Surge   Protection

    Line-Earth   1.2/50us (8/20us): 2KV
        Line-Line 1.2/50us (8/20us): 1KV

    Mechanical   Characteristics

    Case:   Plastic
        Color: Black
        Mounting: Wall- mounted
        IP Rated: IP40
        Connectors: Shielded RJ-45*2
        Size: 134mmX 56mmX 33mm
        Weight: 150g(0.33lb)

    LED Indicator

    Power   Indicator : Green
        PoE Load Indicator : Green

    Warranty

    2 year

    Safety   Approvals

    CE,FCC
