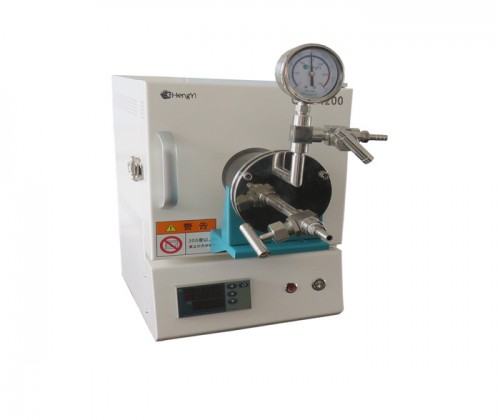

CHY-H1210 Compact 1200 degree Muffle Tube Furnace for multi using
Visits: 173
    • Price: $ 0.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: CHENGYI
    Specifications: --
    Type New
    Date: 19-06-2020
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 0 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     CHY-H1210 Compact 1200 degree Muffle Tube Furnace for multi using  laboratory Muffle Furnace muffle furnace manufacturer



    1.100*100*100mm chamber dimension

    2.high quality ceramic fiber chamber

    3.PID Programmable controller

    4.Muffle Furnace/Tube Furnace multi-function using

    5.Made by Henan Chengyi



    Muffle Furnace APPLICATION

    1.laboratory heat thermal processing cement, building materials industry etc

    2.Pharmaceutical medicines inspection, preteatment of medical sample

    3.Analytical Chemistry Industry: water analysis and environmental analysis

    4.Analysis of coal quality,determine moisture, ash, volatile matter, ash melting point analysis, gray component analysis, and elemental analysis



    PRODUCT PARAMETERS

    Product Name

    1200 Degree Muffle Tube Furnace

    Model

    H1210

    Furnace Door

    side open type

    Display Model

    Highlight LED display

    Maximum Temperature

    1150℃

    Working Temperature

    ≤1100℃

    Heating rate

    ≤20℃/min  Suggest:10℃/min

    Heating zones

    Single heating zone

    Hearth dimensions

    100mm×100mm×100mm

    Hearth volume

    1L

    Tube Size

    O.D60*270mm

    Sealing method

    Vacuum sealing flange

    Vacuum degree

    10-3Pa with Turbo pump system

    Control mode

    Intelligent PID auto control

    Temperature Accuracy

    ±1℃

    Temperature curve

    30 segments programmable

    Over heat alarm

    Have

    Overcurrent protection

    Have

    Thermocouple Failure Protection

    Have

    Temperature measure element

    K-type thermocouple

    Heating Element

    Fe-Cr-Al Alloy doped by Mo

    Hearth Material

    high purity alumina fiber

    After-sales service

    12 month warranty, durable maintaince and repair support

    Power Supply

    220V  50HZ

    Rated power

    0.75kw

    Overall dimensions

    400×400×450 (mm )

    Packing

    3-ply wooden case

    Accessories

    plate,protective glove,crucible hook,crucible tongs,quartz tube,vacuum flange,user manual.



    Our compact 1200c muffle furnace is electrically heated with coil heating elements supported on ceramic tubes generally provided on both side wall and back wall.



    Founded in 2013, CHENGYI is a manufacturer of lab equipment. We not only can supply standard lab equipment, but also we do customized as request. We sincerely welcome worldwide friend come to visit us!

    For more laboratory equipment, please click here to visit our website.



    http://www.hnchengyi.com/1200c-muffle-furnace/muffle-furnace-manufacturer.html
