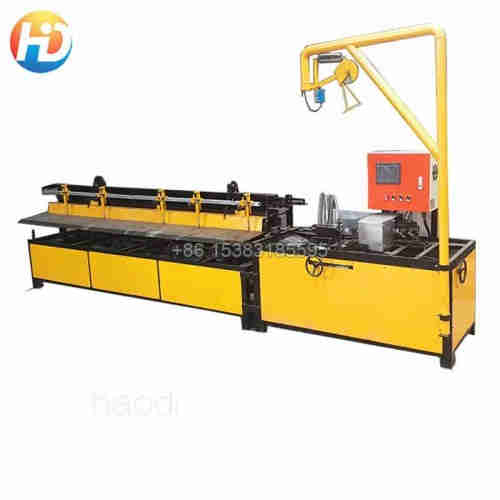

PLC controlled Semi Automatic Chain Link Fence Machine
Main Features
1) PLC controlled semi automatic machine
2) servo-motor control Speed, and good performance
3) Single wire feeding (inlet)
4) Chain link fence width automatic change
Brand: Haodi
Mesh Size: 25×25 mm – 125×125 mm
· Wire Diameter: 1.3mm – 4.2 mm (PVC Wire: 1.6mm – 5.8 mm)
· Designed for continuous working system as 24 hours.
· single-wire input.
· One mold technology
· Can be used with kind of galvanized or pvc wire. Stainless steel wire,Annealed wire,aluminum cald steel wire. Vinyl coated wire
· Controlled with the touch screen.
· Wire fencing speed can be set can set via touch screen.
· Improved system to avoid losing time for beginning fencing while changing mold.
· High Energy Saving through the patented operating system and software.
· Owing to special noise isolation, works with very low noise.
· Just one technical person is enough to wire fencing process.
If you want to inquire Chain Link Fence Machine price,please click here
|
semi automatic chain link fence machine |
|||
|
Machine |
Dimensions |
mm |
5100 * 1000 * 1450 (3m wire mesh machine) |
|
|
Type |
|
HD-3000 |
|
|
Origin |
|
Hebei, China |
|
|
Power |
Kw |
4 (2.5Kw, 1.5Kw) |
|
|
Weight |
Kgs |
800 |
|
Wire mesh |
Mesh Width |
m |
0.5-3(5) |
|
|
Wire Diameter |
mm |
1.2-4.5 (PVC Wire: 1.6mm – 5.8 mm) |
|
|
Hole size |
mm |
25-100(1" - 4") |
|
Others |
wire materials |
Galvanized iron wire |
PVC WIRE, stainless steel wire |
|
|
capcity |
m2/hour |
60-120 |
|
|
Rated Voltage |
V |
220 380 420 440 etc |
Good performance of Semi Automatic Chain link fence machine:
1: production efficiency is about twice of same species
2: fault is the lowest in the same species
3: machine is easy and simple to handle.the worker has the common mechanical knowledge can master it in one hour
4: the loss of the raw materials of the same species is 1%-5%, while the innovative this Chain link fence machine is nearly zero.
5: the Chain link fence machine can Save 20% of your electricity
6: it is suitable to all kinds of mild steel wires
7: the mesh size has a wide of wide adjustable range
8: the preferential price and first-class quality is the most ideally choice of the customers
chain link mesh machine supplier: AnPing HaoDi metal wire factory
Main Features
1) PLC controlled semi automatic machine
2) servo-motor control Speed, and good performance
3) Single wire feeding (inlet)
4) Chain link fence width automatic change
Our Services
Engineers avaliable to service machinery overseas. Offer customer instruction list, and necessary videos.
