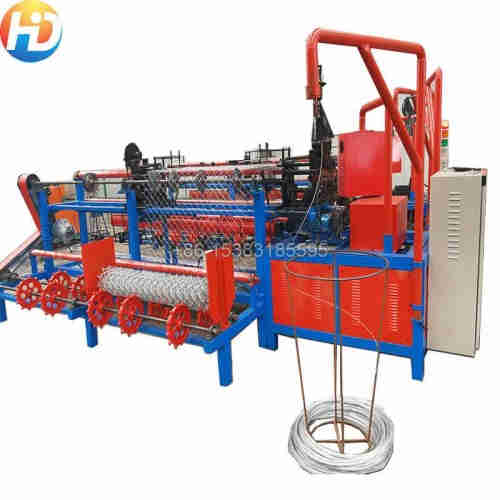

Double wire fully-automatic chain link fence machine also called Chain link fence machine or Diamond mesh making machine. It's auto wire fencing machine. CNC PLC Controller fully automatic machine with best service. This mesh fence machine use high speed and stable servo motor controlling. it contain rolling part and edge folded or twisted part.
· Wire fencing capacity (speed): 140m2 / hour – ( as result of tests 70mm mesh size)
· Wire fencing option up to 7 meters height.(the minimum could be any size)
· Rolling models two type: Compact roll. Normal roll.
· Designed for continuous working system as 24 hours.
· Dual-wire input.
· Double Wire Chain Link Fence Machine Can working with galvanized wire, PVC coated wire.Stainless steel wire, Annealed wire,Hard drawn wire ,Aluminum clad steel wire
· Controlled with the touch screen.
· Automatically weaving fencing, cutting, and roll wrapping process.
· All the information about metering, weaving speed can be set by touch screen.
· Informs the wire fencing errors with light and sound.
· Allows document information about the daily work and metering report.
· Improved system to avoid losing time for beginning fencing while changing mold.
· High Energy Saving through the patented operating system and software..
· Owing to special noise isolation, works with very low noise.
· Just one technical person is enough to wire fencing process.
|
Machine |
Dimensions |
mm |
5800 * 2300 * 1800 (3m wire mesh machine) |
|
|
Type |
|
HD-DW-3000 |
|
|
Origin |
|
Hebei, China |
|
|
Power |
Kw |
9.5 |
|
|
Weight |
Kg |
1800 |
|
Wire mesh |
Mesh Width |
m |
0.5-3(7) |
|
|
Wire Diameter |
mm |
1.5-4.5 (PVC Coated Wire: 1.8mm – 5.8 mm) |
|
|
Hole size |
mm |
25-100(1"-4") |
|
|
capacity |
m2 / hour |
80-140 |
|
|
Rated Voltage |
V |
380V, 50Hz |
Good performance of Automatic Chain link fence machine:
1: production efficiency is about twice of same species
2: fault is the lowest in the same species
3: machine is easy and simple to handle. the worker has the common mechanical konwledge can master it in one hour
4: the loss of the raw materials of the same species is 1%-5%, while the innovative Chain link fence machine is nearly zero.
5: the Chain link fence machine can Save 20% of your electricity
6: it is suitable to all kinds of mild steel wires
7: the mesh size has a wide of wide adjustable range
8: the preferential price and first-class quality is the most ideally choice of the customers
Main Features
1) PLC controlled Fully automatic machine
2) servo-motor control Speed, and good performance
3) Double wire feeding (inlet)
4) Chain link fence width automatic change
5) Chain link fence machine / machine with best service / diamond mesh machine / diamond wire mesh machine / diamond mesh making machine / automatic machine with best service / fully automatic machine with best service / fence weaving machine
