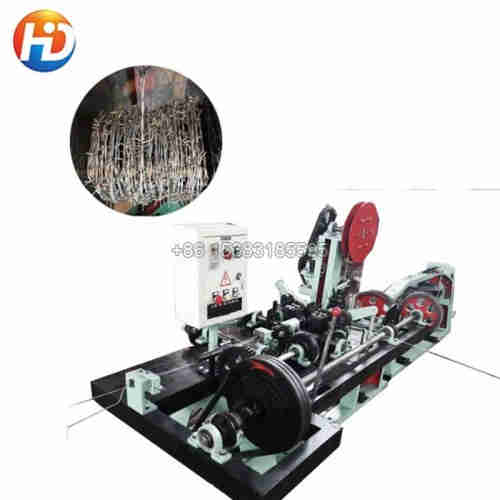

CS Type automatic barbed wire machine
CS Type Barbed Wire Machine
|
Model |
Barbed space |
Single Strand Wire Dia. |
Barbed Wire Dia. |
|
CS-A |
3", 4", 5", 6" |
1.5mm-3.0mm |
1.5mm-2.8mm |
|
Model |
Country of origin |
Brand |
Fob Tianjin |
Delievery |
Payment terms |
|
CS-A |
China |
HaoDi |
$4500/set |
Witin 7days |
30% advanced payments,others against B/L copy |
|
CS-B |
China |
HaoDi |
$4700/set |
Witin 7days |
|
|
CS-C |
China |
HaoDi |
$4700/set |
Witin 7days |
Usage
This automatic barbed wire machine can produce positive and negative twisted barbed wire which is widely used in national defense, military, railway, highway, animal husbandry and other industries.
The materials used for positive and negative twisted barbed wire are usually hot dipped galvanized wire, electric galvanized wire etc.
Positive and negative twisted barbed wire use positive and negative way for winding flowers, the barbed wire products produced has no rebound and winding phenomenon, so it is more beautiful compared with the general barbed wire.
Brand: HAODI ®
CS-A Normal twisted barbed wire machine
Parameter of the wire barbed machine
raw material: hot plated low carbon steel wire, galvanized wire and pvc coated wire
torn distance: 3" 4" 5" or 4" 5" 6"
twist number: 3.5
strand diameter: 1.8-3.0mm
wire diameter: 1.7-2.8mm
theoretical yield: 80-120kg / h
motor: 3 kw
main drive shaft speed: 420r / min
Production:70kg / h
weight: 1000kg
dimension of main part: 1900mm * 1300mm * 980mm
dimension of take-twisting part: 1800mm * 750mm * 750mm
easy damage parts: twist, cutter
In Carton box dimension: 2040mm * 1600mm * 1450mm
If you want to inquire barbed wire machine price,please click here
