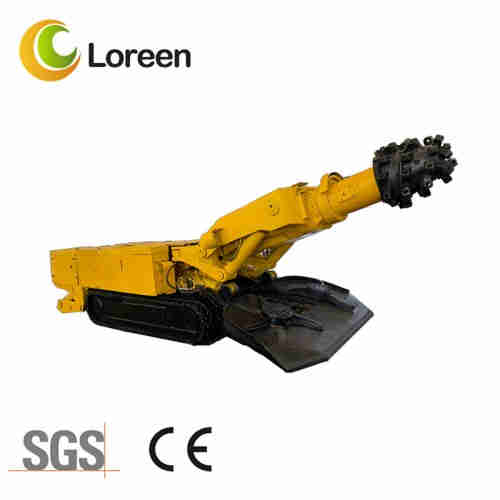

EBZ135 Roadheader For Mining and Tunneling
Heavy Duty Roadheader Application:
EBZ series Roadheader is a kind of comprehensive tunnelling equipment intergrated with continuous cutting, conveying and moving. it suits for tunneling with different shape crosssection in coal lane, half coal lane and soft rock.
The underground working roadheader adpot three dimensional design and the key spare parts are famous international brand products to ensure reliable performance. The center of gravity preposition design benefit for stable operation after connecting the belt stage loader. EBZ series Roadheader suits for mechanized production in coal mine and tunnel works.
EBZ135 roadheader is designed as compact structure, low body, low center of gravity. easy operation, good working performance.
roadheader factory:LOREEN
Roadheader Tunneling Machine Technical Parameter:
|
Main Technical Specification |
EBZ135 |
|
Cutting Motor Power |
135Kw |
|
Oil Pump Motor Power |
75Kw |
|
Cutting Hardness |
≤70MPa |
|
Location Cutting Range |
Height: 4 m |
|
Width: 5.1 m |
|
|
Machine Weight |
38.8 T |
|
Dimension (Length * Width * Height ) |
8.92*2.8*1.53 m |
|
Rotary speed of cutter head |
44 r/min |
|
Rotary Speed of star wheel |
33 r/min |
|
Loading capacity |
3.4 m³/min |
|
Speed of 1st conveyor |
40 m/min |
|
Grade Ability |
±18º |
|
Gantry Height |
400 mm |
|
Hydraulic System Pressure |
≤18 MPa |
|
Hydraulic Oil Tank Capacity |
500 L |
|
Dinting Depth |
0.2m |
|
Supply Voltage |
AC1140/660V |
