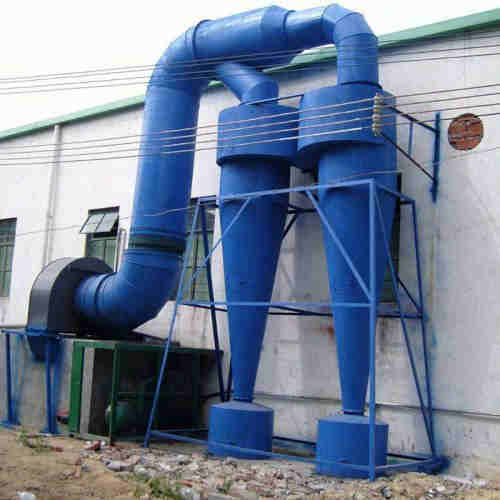

XLP-B Cyclone bag filter house Industrial Dust Collector for factories Cyclone Dust Collectors Cyclone Dust Collector for sale
XLP/B Type(the former is CLP/B Type) is Dry-type high efficiency cyclone dust collector with bypass.
Product Description
XLP / B type is grouped into X-type (suction type) and Y-Type(pressure type) on the basis of the position before or after the fan. For X-Type, there is outlet spiral shell in the dust collector body. X-Type and Y-Type grouped into N-type (left rotation) and S-type (right rotation) according to the spiral direction of rotation
Cyclone Dust Collector is mainly applied to remove non-stick dust, coal, sand, dust fume etc.
TZ-CYCLONE DUST COLLECTOR Parameter
|
Type |
Wind speed for Inlet (m^3/s) |
Air Volume (m^3/h) |
Resistance(kg/m^2) |
Efficiency (%) |
overall dimension(L×W×H) |
Weight (Kg) |
||
|
X |
Y |
X |
Y |
|||||
|
XLP/B~3.0 |
12~27 |
630~1050 |
30~90 |
27~75 |
85~99 |
438×381×1606 |
439×381×1360 |
66 |
|
XLP/B~4.2 |
1280~2138 |
603×534×2172 |
630×534×1375 |
108 |
||||
|
XLP/B~5.2 |
2090~3480 |
772×685×2764 |
772×685×2395 |
170 |
||||
|
XLP/B~7.0 |
3650~6080 |
994×889×3529 |
994×889×3089 |
283 |
||||
|
XLP/B~8.2 |
5030~8380 |
1167×1040×4110 |
1167×1040×3600 |
374 |
||||
|
XLP/B~9.4 |
6550~10620 |
1332×1094×4671 |
1332×1094×4110 |
477 |
||||
|
XLP/B~10.6 |
8370~13980 |
1495×1345×5232 |
1495×1345×4621 |
578 |
||||
Advantages of Cyclone bag filter industrial dust collector
1. High efficiency≥99.5%
2. Low emission concentration ≤20um, but also ≤10um is possible after filtering according to practical situation
3. Low leakage rate
4. Material—carbon steel or stainless steel.
5. Simple Structure, easy maintenance
6. Suitable bags and bag cages fitted according to dust properties. Glass Fiber, needle felt, PTFE, p84., etc
7. The overhaul and bag replacement can be carried out for separate chamber under the condition that system blower and system run normally.
8. The whole set of equipment is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm
9. It is not sensitive to the characteristics of the dust, and it is not affected by dust and resistance.
Our service-Hebei Taizhe Machinery Equipment Trading Co., Ltd
1. Customized design according to the specific working conditions. To be the optimal structure design.
2. Quick delivery time and one-stop service for convenience and time saving.
3. After-sales service, video guidance, engineers can be door-to-door service.
4. Guarantee 20 years working life of bag filter equipment.
High quality cyclone dust collector for sale. Cyclone bag filter is mainly applied to remove non-stick dust, coal, sand, dust fume etc. Customized design according to the specific working conditions.
Founded in 2007, Hebei Taizhe Machinery Equipment Trading Co., Ltd is a dust collection system manufacturer with R & D, design, production, installation and after-sale service. Have many years of export experience, worthy of your trust!
