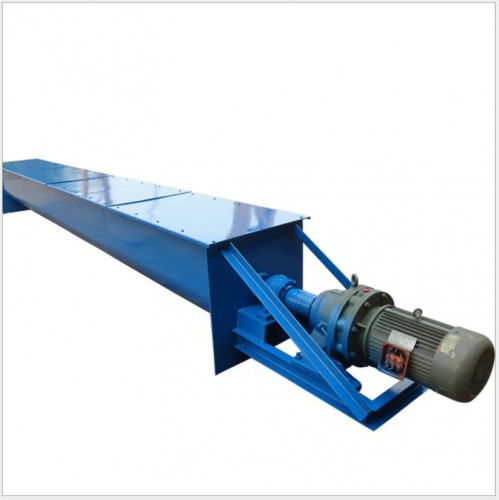

china supplier best capacity automatic Control Screw Conveyor for cement  automatic Control Screw Conveyor screw conveyor manufacturers

screw conveyor is one standard equipment,it has many advantages, for example: strong adaptability, easy maintenance, low consumption, large throughput, etc. Widely used to transmission of cement, sand and dust, lime and food, etc.

Spiral conveyor machine Description

Customized screw chip conveyor remove Stainless conveyor machine

LS series screw conveyor is one standard equipment,it has many advantages, for example: strong adaptability, easy maintenance, low consumption, large throughput, etc. Widely used  to transmission of cement, sand and dust, lime and food, etc. The drive for LS Screw Conveyor is XWD Series Cycloid reducer, Maximum transmission distance of LS series screw conveyor is 70M when the tranportation above 35M must used double Double-side drive.

Application of Screw Conveyor for cement:

packing screw conveyor machine are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These feeders can horizontal transport materials, also it can slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle.

LS type SCREW CONVEYOR data:

Model Item		LS150	LS200	LS250	LS300	LS350	LS400
Spirochete diameter(mm)		150	200	250	300	350	400
Display pipe diameter(mm)		165	219	273	325	377	426
Allow transmission Angle(α°)		0-60	0-60	0-60	0-60	0-60	0-60
		0-30	0-30	0-30	0-30	0-30	0-30
		0-15	0-15	0-15	0-15	0-15	0-15
Maximum transmission lengths(m)		12	13	14	15	16	16
		16	17	18	21	22	22
		20	22	25	27	28	28
Maximum transmission capacity(t/h)		30	48	80	110	140	180
		22	30	50	70	100	130
		15	20	35	50	60	80
Input power(KW)	L<6m	2.2-7.5	3-11	4-15	5.5 -18.5	7.5-22	Same type of products More... ZW-40 QIJIU Conc $ 1.00 MJ-250 Portabl $ 0.00 3D CO2 Laser Ma $ 0.00 architectural w $ 15.00 Auto Wire Rebar $ 1.00 Comment Comment on the content: Enter verification code: Seller information Hebei Taizhe Machinery Equipment Trading Co., Ltd. Name Hu Qiufang Telephone: 860311 68026255 Fax: 860311-68026255 Mobile: Location: Shijiazhuang Hebei Address: Putian Building 12th Floor, Botanical Garden Street No.33, Xinhua District Latest products Dust humidification mixer Industrial dust industrial automatic boiler professional ZXWD High efficiency industrial electrost DF-750 4-16mm CNC automatic stirrup wire Auto Wire Rebar Stirrup Bending Machine New Condition and 300t/h Load Capacity pn china supplier best capacity automatic Co XLP-B Cyclone bag filter house Industrial PPC type High efficiency pulse jet bag fi Advertise | About Us | FAQs | Premium Membership | Terms of Use | Contact Us Copyright © TopBuySell.com
