Dust humidification mixer Industrial dust humidifier DSZ dust humidifier Industrial dust humidifier supplier
Humidifying mixer is mainly used for spraying, humidifying, stirring and conveying powder dry ash of various ash warehouses to meet the requirements of environmental protection and transportation. Widely used in chemical, mining, power plants, steel mills and other solid particles containing the humidification, mixing and transportation.
Product Description
Dust humidification mixer Industrial dust humidifier DSZ dust humidifier

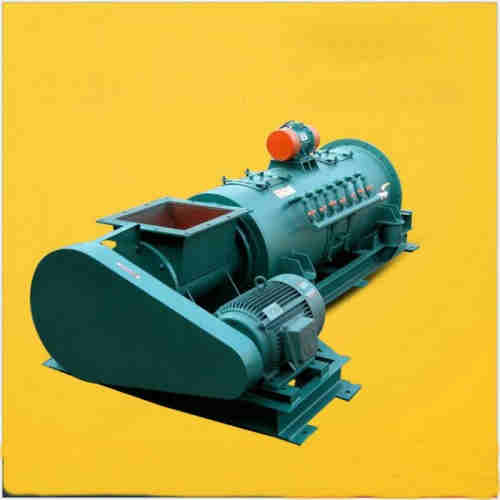

Single-Shaft Dust Humidification Fly Ash Humidifier Mixer
Humidifying mixer is mainly used for spraying, humidifying, stirring and conveying powder dry ash of various ash warehouses to meet the requirements of environmental protection and transportation. Widely used in chemical, mining, power plants, steel mills and other solid particles containing the humidification, mixing and transportation.
Humidifying mixer Working principle and features:
The single-axis humidifier consists of four parts: uniform feeding, blade feeding, mixed striking humidification, and vibration system, and is equipped with a dedicated electronic control and water supply system. The device is integrally fixed on the base, and the cylinder is supported by four sets of elastic elements.
Excitation device, vibration, so that the entire machine during operation, the cylinder for high-frequency vibration, so that between the cylinder wall and the stirring shaft always maintain a certain gap, so that the machine running resistance is greatly reduced, completely eliminated Boring machine, blocking the phenomenon,
Reduce downtime for cleaning and improve work efficiency. The water supply is controlled by the valve group. In order to stabilize the water supply and clean water quality of the system, a filter is set in the pipeline, and the main control cabinet is used to interlock and control the various parts of the humidifier.
To control the purpose of water supply and humidity.
Single-axis humidifier has the characteristics of large processing volume, compact structure, advanced technology, stable and reliable, and simple maintenance.
Advantages of DSZ dust humidifier:
1. The shaft seal adopts multi-groove labyrinth and packing compound seal, reliable sealing, and light wear on the shaft.
2, large output (every hour can be mixed and humidified 200t), evenly humidified, reliable work.
3. Specially-made atomizing nozzles and water supply systems with adjustable water volume can ensure uniform humidification of materials.
4. The stirring rod is made of iron-based wear-resistant alloy or composite ceramics, which has a long service life.
5. The shell lining is made of iron-based wear-resistant alloy, which has a high service life and avoids material self-flow caused by excessive clearance after wear.
6, the aircraft layout is flexible, there are two forms of chain drive and direct connection, the transmission mechanism using cycloid reducer.
7. Increase the vibration system so that it overcomes the problem of handling the viscous dust and easily forms the adhesiveness of the cylinder wall, improves the adaptability of the humidifier, and expands the application range of the humidifier.
Industrial dust humidifier parameter:
|
Model number |
DSZ-50 |
DSZ-60 |
DSZ-80 |
DSZ-100 |
DSZ-120 |
|
Production capacity(m3/h) |
15 |
30 |
60 |
100 |
160 |
|
Humidifying Method |
Single shaft stirring |
||||
|
Motor power(kw) |
7.5 |
11 |
18.5 |
37 |
45 |
|
Average water add(m3/h) |
2.2~3.7 |
4.5~7.5 |
9~15 |
12~20 |
24~40 |
|
Average water content(%) |
15~25 |
||||
|
Water pressure range (Mpa) |
0,2~0,6 |
||||
|
Temperature(°C) |
≤300 |
||||
|
Water pipe size |
Dg32 |
Dg32 |
Dg40 |
Dg40 |
Dg50 |
|
Vibrating motor power(kw) |
0.25 |
0.25 |
0.75 |
1.1 |
2.2 |
Packaging & Shipping
1. Outside: plywood pallet, plywood cases, fumigation free.
2. Inner Package: wrapped with stretch film.
3. Warning lable, nameplate, instruction.
4. Spring fixed backet, pallet fixed backet.
5. Spare parts of springs, seals.
6. Shipping mark as custom approved.
FAQ about DUST HUMIDIFYING MACHINE
1. Q: Are you a factory or trading company?
A: We own 1 factory and have 2 cooperated factories, hebei taizhe machinery trading Co.,ltd is a trading company.
We have the improvement teams from design, manufacture....to installation, commissioning and staff training.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shijiazhuang City, the capital of Hebei Province, 1.5 hours way by high-speed rail from beijing to shijiazhuang
It’s near the airport and train station.
3. Q: How does your factory do regarding quality control?
A: We test our machine before shipping. Our factory has gained ISO9001:2008 authentication.
4.Q: How long is the warranty?
one year warranty and free cunsultaion during the period of use.
5.Q: how to pay for the product?
L/C, T/T and Western union is available.
6.Q: What about your delivery time?
A: Normally within 20-30 days against down payment.
7.Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Founded in 2007, Hebei Taizhe Machinery Equipment Trading Co., Ltd is a dust collection system manufacturer with R & D, design, production, installation and after-sale service. Have many years of export experience, worthy of your trust!
