Wafer Pad

Information:

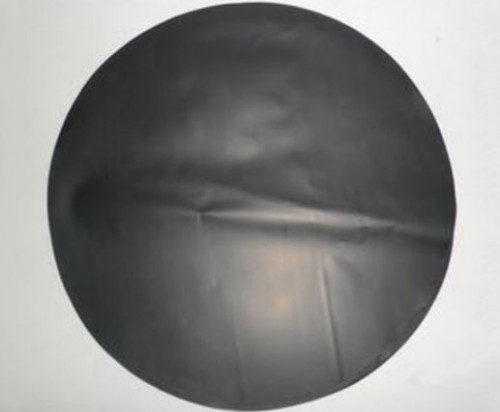

Wafer pads are also known as antistatic pads, antistatic sheets, conductive separators, black wafer spacers, antistatic wafer spacers, conductive wafer spacers, wafer spacers, black wafer pads, black wafers. Separator, circular wafer pad, circular wafer separator, wafer square, and surface treatment process, also known as anti-static black embossed wafer pad, black wafer anti-slip spacer, embossed wafer Square pieces and so on.

The accumulated charge of the wafer and other products placed on the wafer pad can be well vented through the bag body, and the electronic sensitive component can be protected from electromagnetic waves and static electricity.

●The surface resistivity can be adjusted between 10^3-11Ω/Square as required;

●Can be made to any size and shape according to customer requirements;

●Excellent dimensional stability, smooth surface without dusting;

● has good rigidity and toughness and good tensile and impact resistance;

● The adapted ambient temperature range is also large;

●Static discharge time: <1.0sec

These products are widely used in: clean room, purification workshop, photovoltaic power plant, LED factory, PCB factory, electronics factory, electrical factory, electronic equipment, wafer, LCD/LCM/LED, optoelectronics, chip semiconductor, laser head, Pharmaceuticals, chemical equipment, precision equipment, medical equipment, microelectronics industry, aerospace, military industry, electronic components, optoelectronic products, electronic devices, liquid crystal products, optoelectronic integrated products, etc. The production area where the grade is required.

visit our website:https://www.tongxitech.com/antistatic-series/wafer-pad.html
