Product details

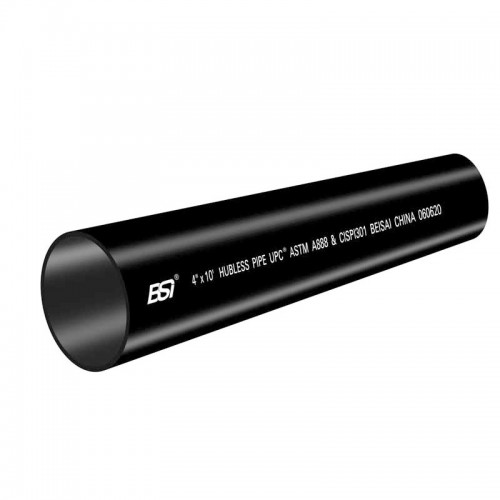

ASTM A888/CISPI301 Hubless Cast Iron Soil Pipe
Product details
ASTM A888/CISPI301 Hubless Cast Iron Soil Pipe
Product Description
ASTM A888/CISPI301/CSA B70 Hubless Cast Iron Soil Pipe
Cast Iron Pipe conforming to ASTM A888/CISPI301/CSA B70
Material: Grey Cast Iron pipe
Size: 1 1/2 ″-15″
Internal and external Coating: Black bitumen or epoxy resin
CSA B70 Hubless Cast Iron Soil Pipe
|
Size |
Wall thickness |
Min inside diameter |
Outside Diameter |
|
|
inch |
min(mm) |
mm |
min(mm) |
max(mm) |
|
1½ |
3.0 |
35.50 |
46.00 |
50.00 |
|
2 |
3.0 |
47.80 |
57.00 |
62.00 |
|
3 |
3.3 |
73.00 |
83.00 |
87.50 |
|
4 |
3.8 |
98.60 |
109.00 |
114.00 |
|
6 |
3.8 |
148.00 |
160.00 |
166.00 |
|
8 |
4.3 |
197.00 |
213.00 |
219.00 |
|
10 |
5.6 |
246.00 |
267.00 |
271.00 |
|
12 |
5.6 |
297.00 |
318.00 |
322.00 |
|
15 |
7.6 |
370.00 |
397.00 |
402.00 |
