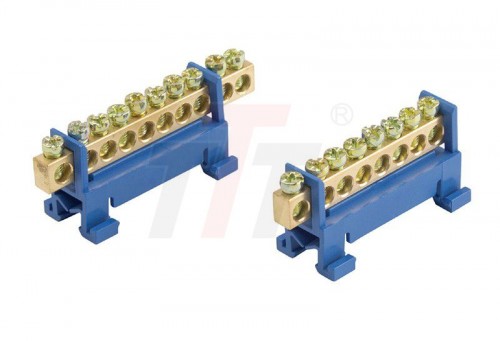

Electrical Terminal GK009-0609
GK009 Terminal series use high quality brass raw material, has the characteristics of high-current- carrying capacity, convenient-wiring and durable quality.With acid-pickling treatment, products are not easily oxidized.Due to Precisely manufacturing, it avoid the difficulty of reinstallation after many times . From mold design to material processing, from parts manufacturing to product assembly, we strictly control every process,.High quality, large manufacturing capacity, trustworthy!
|
Pole No. |
Installation Dimension(mm) |
Outline Dimension(mm) |
Sectioncross of Brass(mm2) |
|
7 |
35*7.5 |
50*21 |
6*9 |
|
8 |
35*7.5 |
57*21 |
6*9 |
|
10 |
35*7.5 |
71.5*21 |
6*9 |
|
12 |
35*7.5 |
8435*21 |
6*9 |
|
13 |
35*7.5 |
91*21 |
6*9 |
|
15 |
35*7.5 |
104*21 |
6*9 |
Requirements to a Brass Screw Terminal body
1 The terminal body is manufactured from copper-zinc alloy
2 The terminal body is to be manufactured in parallelepipedal shape with mutually perpendicular side planes. Deviation of perpendicularity is no less than 0,1mm
3 The other sharp edges are to be blunted
4 The surface of holes for wire mounting is to be smooth without burrs, edge fins and etc.
5 The form of thread into threaded openings is to be full without edge fins. Every opening is to have no less than three full turns of a thread
Requirements to a terminal
1 The terminal is to be equipped with screws in the quantity equal to the quantity of contact groups for the wire fixing
2 The screws are not to create troubles to next screws at the operation
3 Dimensions and completed set of terminals are to correspond to design documents.
4 Operation temperature range could be from minus 40 to plus 50 °С.
Outgoing inspection
Visual Check:
- Bring out the absence of outer damages, deep scratches, cracks, chips, corrosion on the terminal and screws.
- All screws are to be entirely tightened.
Temperature Rise Test :
- 5% of the batch of each standard size, but not less than 10 pcs.
Flame Retardant Test:
- 5% of the batch of each standard size, but not less than 10 pcs.
Certifications:
CE, can be of ROHS at your decision
