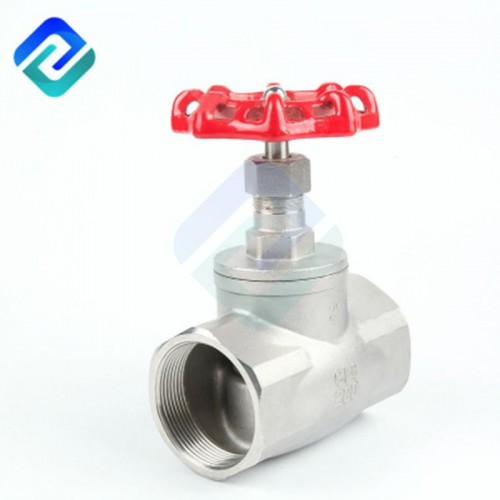

Precision casting internal thread globe valve
Visits: 80
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: Precision casting internal thread globe valve
    Type New
    Date: 07-05-2021
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 2000 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     Precision casting internal thread globe valve

    Cencho Stainless Steel Valve

    The opening and closing part of the precision casting internal thread globe valve is a gate. The movement direction of the internal thread globe valve is perpendicular to the direction of the fluid. The precision casting internal thread globe valve can only be fully opened and closed, and cannot be adjusted or throttled. The internal thread globe valve has two sealing surfaces. The two sealing surfaces of the most commonly used mode  internal thread globe valve form a wedge shape. The wedge angle varies with the valve parameters, usually 50, and 2 ° 52 'when the medium temperature is not high. The  internal thread globe valve of the wedge internal thread globe valve can be made as a whole, called a rigid gate; it can also be made as a  internal thread globe valve that can produce a small amount of deformation to improve its manufacturability and make up for the deviation of the sealing surface angle during processing. The board is called an elastic shutter. The stainless steel  internal thread globe valve material is divided into 304 stainless steel gate valve, 316 stainless steel gate valve, 321 stainless steel gate valve. The representation method is: Z41H-16P.



    Investment castings for body and cap

    Thread End:ANSI B2.1,BS21,ISO7/1

    Pressure Rating:200PSI（PN16）

    Working Temperature: -25℃ ~ +180℃                                                                                                                                                                                               Material:CF8M,CF8,CF3M,WCB

    Inspection Testing: API 598,EN 12266



    Precision Casting Globe Valve Material List

    ITEM

    PART

    MATERIAL

    QTY

    1

    BODY

    A216-WCB

    A351-CF8

    A351-CF8M

    1

    2

    DISC

    A216-WCB

    A351-CF8

    A351-CF8M

    1

    3

    STEM

    A216-WCB

    A351-CF8

    A351-CF8M

    1

    4

    CAP

    A216-WCB

    A351-CF8

    A351-CF8M

    1

    5

    GASKET

    PTFE

    1

    6

    WASHER

    304

    1

    7

    STEM PACKING

    304

    1

    8

    RING

    304

    1

    9

    GLAND

    304

    1

    10

    WHEEL NUT

    304

    1

    11

    PLATE

    304

    1

    12

    HANDLE WHEEL

    ALUMNUM ALLOY

    1



    Dimension Table

    SIZE

    D

    L

    H

    A

    KGS

    DN6

    1/4’’

    10

    55

    79

    65
