CPCI (Compact Peripheral Component Interconnect) Subrack——3U, 4U Horizontal Subrack

Structure Characteristic:

19" standard subrack, all subrack considered the EMC(electro magnetic compatibility); the depth of side plate is 405mm;

3U configured 5 groove(4TE)s;4U configured 7 grooves(4TE); for horizontal installation of 6U×160 plug-in card;

Back panel can install fan and power source;

Radiating wind enter from the intake in front panel, transverse pass the plug-in card and discharge through the fan;

The whole subrack meet the requirement of IEC60297.

1. EMC subrack basic configuration

2. Cover plate

3. Back panel

4. Fan

5. Air baffle

6. Horizontal installation panel suite

7. 5TEpanel

8. Plastic card guide rail

9. Horizontal installation suite

CPCI (Compact Peripheral Component Interconnect ) Subrack——4U, 7U Subrack

Structure Characteristic

19" standard subrack, all subrack considered the EMC(electro magnetic compatibility); the depth of side plate is 405mm.

4U is used for horizontal installation of 3U×160 plug-in card.

7U is used for horizontal installation of 6U×160 plug-in card.

Back panel can install power source.

Radiating wind enter from bottom plate, pass the plug-in card and discharged through the cover cover.

The whole subrack meet the requirement of IEC60297.

1. base system of the components subrack

2. bottom plate/cover plate, the way of ventilation

3. finger protection

4. support frame of the fan

5. plug-in guideway

6. 1U face plate/ 84HP

7. back panel

8. DC fan(direct fan)

9. composite member with all-in-all filter and ICE socket

10. power source

11. Back plane bus

12. direct connect cable

13. alternating connect cable

14. direct fan module

CPCI(Compact Peripheral Component Interconnect ) Subrack——7U Subrack

Structure Characteristic

19" standard subrack, all subrack considered the EMC(electro magnetic compatibility); the depth of side plate is 405mm;

7U is used for installation of 6U×160 plug-in card.;

Back panel can install fan and power source;

Radiating wind enter from bottom plate, pass the plug-in card and discharged from back panel by fan;

The whole subrack meet the requirement of IEC60297.

1. base system of the components subrack

2. cover plate with 1/2U edgefold

3. bottom plate with 1/2 edgefold, ventilation in the front.

4. air deflector

5. air current partition

6. plug-in track

7. back panel

8. direct current fan

9. composite member with all-in-all filter and ICE socket

10.power source

11.back plane bus

12.direct fan module

13.direct connect cable

14.alternating connect cable

15.LED display control module

CPCI(Compact Peripheral Component Interconnect ) Subrack——9U Subrack

Structure Characteristic

19" standard subrack, all subrack considered the EMC(electro magnetic compatibility); the depth of side plate is 405mm;

9U is used for installation of 6U×160 plug-in card;

Back panel can install power source;

Radiating wind enter from bottom plate, transverse pass the plug-in card and discharged from back panel by axial fan;

The whole subrack meet the requirement of IEC60297.

1. base system of the components subrack

2. bottom plate/cover plate

3. EMC backwall

4. EMC panel

5. EMC connect profiles

6. plug-in guideway

7. plug-in guideway for input/output

8. panel 1/2 can overturn

9. panel 1/2, ventilation type, openable

10. EMC backwall, ventilation type

11. EMC backwall with a opening of power plug

12. filter pad, pushable

13. installation plate for RiCool

14. direct current fan

15. all-in-all filter and IEC socket

16. power source

17. back plane bus

18. alternating connect cable

19. direct connect cable

20. display module

21. power switch

22. monitoring module for RiCool

23. power source for RiCool

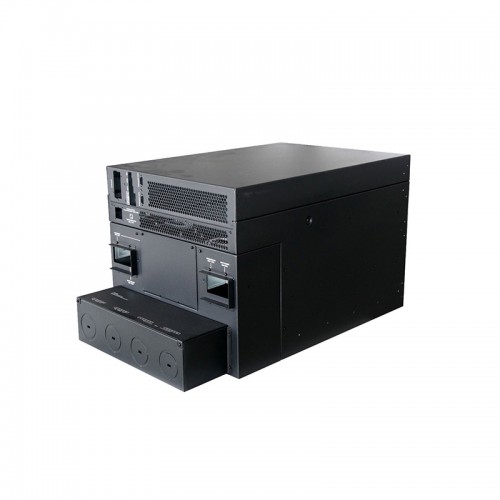

P23Sheet Metal Ahassis

IDU11Z Sheet Metal Chassis

Material: electro-galvanized steel of superior quality

Characteristic:

Compact structure design, can insert two small cards;

Outside surface use electrostatic spraying and printing;

Extensive used in electron industry.

Entrance Guard Chassis

Material: electro-galvanized steel of superior quality

Characteristic:

Outside surface use electrostatic spraying and printing;

Extensive used for electron industry.
