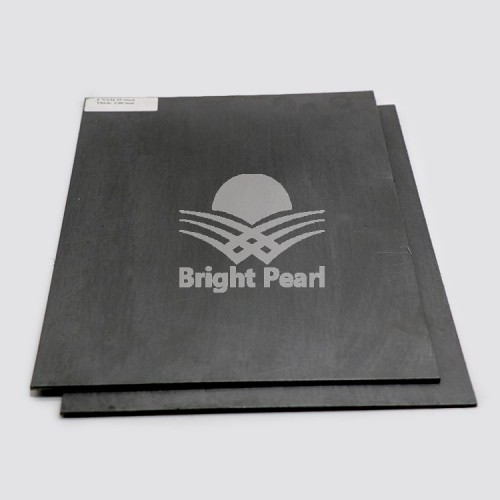

Asbestos rubber sheet with wire net inserted
Asbestos jointing sheet, compressed asbestos fiber jointing sheet, CAF gasket sheet, asbestos sheet, paronite, etc.
Made of Fuyuan good asbestos Fiber rubber with steel wire mesh inserted and compound heating and compression molding it (it can be coated with graphite on the surface one side or two side).
Used for the equipment in water,steam,etc.and used as sealing material in the joints of pipeline.
Working pressure : 3～14 Mpa, Max working temperature: 150 ～ 450℃
This series include: JXB150,JXB200,JXB250, JXB350,JXB450.
Available Sizes:
Thickness: 1.0 to 6mm
4500 x 1500mm, 4100 x 1500 mm, 3850 x 1300 mm, 1270 x 1270 mm,
1500 x 2000 mm, 1500 x 1500 mm , 1500 x 1350 mm, 1500 x 1000 mm ,
The other size is optional or according to the requirements of customers.
Packing: in wooden pallet of about 1000 kg, 2000kgs net each.
Hebei Fuyuan Sealing Materials Co., Ltd. is an Asbestos Fiber Sheet Manufacturer.
FAQs
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei
Q: Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
Q: How can I get the quotation?
A: We usually quote within 24hours after we get your inquiry. If you are very urgent to get the price please call us or tell us in your email so that we will regard your inquiry priority.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,ect. You can choose the one which is the most convenient or cost effective for you.
Q: Can you do further process?
A: Sure. We also can help our customers do the further such as printing and punching.
Product Data Sheet
|
Item |
XB450 |
JXB350 |
JXB250 |
JXB200 |
JXB150 |
||
|
Tensile strength MPa ≥ |
21.0 |
15.0 |
10.0 |
9.0 |
7.0 |
||
|
Burning Loss %≤ |
27 |
29 |
|||||
|
Compressibility % |
7 ～ 17 |
||||||
|
Rebound degree |
42 |
40 |
|||||
|
Creep Stress-relaxation≤ |
50 |
||||||
|
Aging Coefficient ≥ |
0.9 |
||||||
|
Density g/cm³ |
1.9 ～ 2.0 |
||||||
|
Normal temperature Pliability |
Bend 180 degree on the round column (the column diameter is 12 multiple sample thickness), No crack |
||||||
|
Nitrogen leakage rate [(ml/h.mm)] ≤ |
500 |
||||||
|
Steam Airtightness |
Temperature ℃ |
440～450 |
340～350 |
240～250 |
240～250 |
190～200 |
140～150 |
|
Steam pressure MPa |
13～14 |
9～10 |
7～8 |
6～7 |
4～5 |
3～4 |
|
|
Request |
Keep for 30 minutes without Leakage |
||||||
