Product details

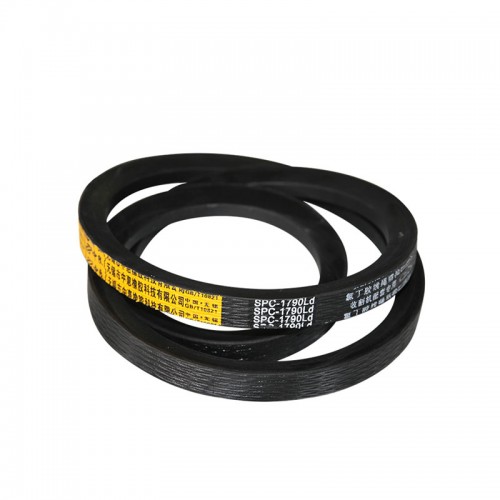

Agricultural Narrow Wrapped Belts
Visits: 154
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: Agricultural Narrow Wrapped Belts
    Type New
    Date: 24-05-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 100 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     Agricultural Narrow Wrapped Belts

    SPZ, SPB, SPC, SPA, 3V, 5V, 8V, 9J, 15J, 20J, 25J



    Application Areas

    Application areas: Combine Harvesters

    Our high quality agricultural wrapped and REC (Raw Edge Cogged) Belts can be widely used on almost all of popular combine harvesters as below listed

    John Deere, Agco, Case, New Holland, Claas, Deutz-Fahr, Horwood Bagshaw, Laverda, Massey Ferguson, Owatonna, Vassalli,Versatile, White, Gomselmash, Rostselmash, Maxxi, Fieldking, Vardhman, Dronningborg, Sampo, etc. Once you provided us belt part number, you will received our quotation.



    Features of China Combine Harvester Belt

    Superior high power transmission capacity

    Aramid cord reinforcement for high tensile strength

    Lower elongation and slippage

    Excellent performance under heavy shock load conditions

    Suitable for drives with small pulley diameters

    Suitable for heavy-duty, high-speed applications

    Anti-static, oil and heat resistant

    Temperature range: -25˚C to +100˚C

    Manufactured in ISO 9001 registered facilitiy



    Structure Details

    No.

    Name

    Material

    Function

    1

    Cover Fabric

    Polyester Cotton Canvas

    Protect the linling tensile member

    2

    Top Fabric

    Polyester Cotton Canvas

    Wear-resistant bias-cut neoprene rubberised polyester cotton fabric

    3

    Filler Rubber

    NR, CR, SBR

    Maintain the top shape of the adhesive tape

    4

    Cushion Rubber

    NR, CR, SBR

    Core material to pass the dynamic force

    5

    Tension Cord

    Polyester/ Kevlar Cord

    High tensile cord embedding cushion rubber compound

    6

    Base Rubber

    NR, CR, SBR

    Support and protect the adhesive force of the tensile member

    7

    Buttom Fabric

    NR, CR, SBR

    Maintain the bottom shape of the adhesive tape





    Product Specifications of zhongliang Narrow Agricultural Belt

    Section

    Dimensions

    Manufacturing Length Range



    Top Width (mm)

    Height (mm)

    Angle (Degree)

    Min. (inch/mm)

    Max. (inch/mm)

    SPZ

    10

    8

    40

    40 / 1000

    590 / 15000

    SPA

    13

    10

    40

    40 / 1000

    590 / 15000

    SPB

    17

    14

    40

    40 / 1000

    590 / 15000

    SPC

    22

    18

    40

    40 / 1000
