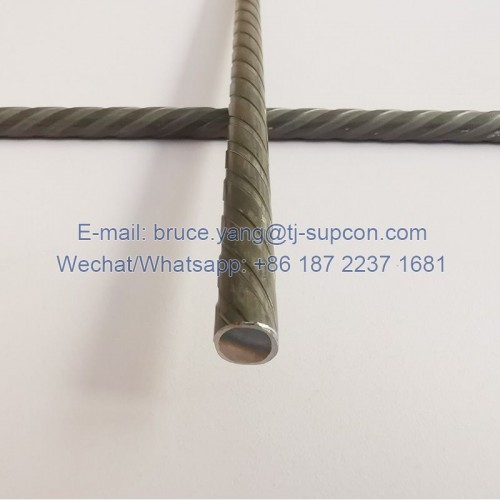

Prestressed Concrete Steel Wire Spiral Ribbed Huayongxin
PC Wire (also referred to as Prestressed Concrete Steel Wire) is high tensile, low relaxation steel wire made from high-carbon steel and widely used for prestressed and post-tensioning technology in various shapes of PC structures.
Has the following characteristics and advantages:
High tensile strength and low relaxation
More bonding stress between wire and concrete
Stable modulus of elasticity
|
Product Name |
|
|
Type of Surface |
Spiral Ribbed, Indented, Plain |
|
Materials |
SWRH82B |
|
Diameter |
4.0mm, 4.8mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 9.0mm |
|
Surface treatment |
Uncoated prestressed steel wire, prestressed epoxy coated steel wire and galvanized prestressed steel wire. |
|
Tensile Strength |
1470Mpa-1770Mpa |
|
Relaxation (%) |
≤2.5 |
|
Elongation (%) |
≥3.5 |
|
Standard |
ASTM A 421, GB/T5223, BS5896, JISG3536, and required standard. |
|
Packing |
Volume (about 700-1300kg/ volume). Each roll is bound with steel tape at 8 places and fully wrapped with rust-proof plastic and PP braided sheet. |
|
PC Wire Application |
PC Wire is characterized with high tensile strength and low relaxation. It's widely used in production of prestressed spun concrete poles, PHC Piles, in construction of large scale railroad, high-way bridges, building trusses, overhead crane beams, industrial and civil prefabricated concrete slabs, wall board, power station, etc. |
|
HUAYONGXIN Advantages
|
Professional team to manage production and control product quality.
Equipped with advanced test equipment, and comply with the principle of testing each coil produced.
Rich export experience. |
