High Precision Optical Windows China

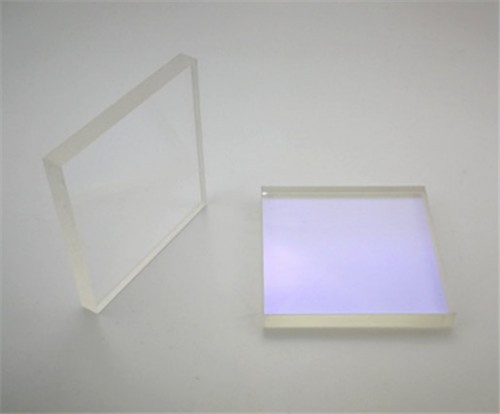

The optical window is a double-sided parallel plane plate, which does not change the magnification of the system. Optical windows are usually used as a external protective barrier to protect optical detectors, sensors, optical lenses from the light transmission. Optical windows are commonly used in biomedicine, scientific research, underwater imaging, aerospace, optical instruments, laser optics, military defense, and other fields. We can provide you with customized optical windows made of various optical materials, such as N-BK7, H-K9L, B270, Borofloat, silicon (Si), ultraviolet quartz glass, and sapphire. . And can provide a variety of coatings in the ultraviolet (UV), visible light (VIS) or infrared (IR) range.

Commen Materials and characteristics of Precision Grade optical windows

N-BK7, H-K9L Windows

The chemical properties of N-BK7 and H-K9L are very stable, scratch and corrosion resistant. N-BK7 and H-K9L are easy to be ground and polished and is a kind of high-quality optical material. BK7 has high homogeneity, with low content of bubbles and magazines. They have good internal transmittance in the range of visible and near infrared spectrum (330 nm-2.0 µm). When the thickness of optical materials is 10mm, the internal transmittance is greater than 90%.

B270 Windows

B270 is a kind of optical glass supplied with Up-Draw Process by SCHOTT. It has high transmittance in the visible spectrum and stable chemical properties. It is supplied in large size, with a fire polished surface, and a variety of thickness specifications are available. It is suitable for commercial applications that demand low-precision thin and light substrates. It is often used as a protection device between two interfaces. B270 windows can be applied to blood analyzers, gas composition analyzers, wastewater and combustion analyzers, etc.
