Dielectric Resonator StrongFirst

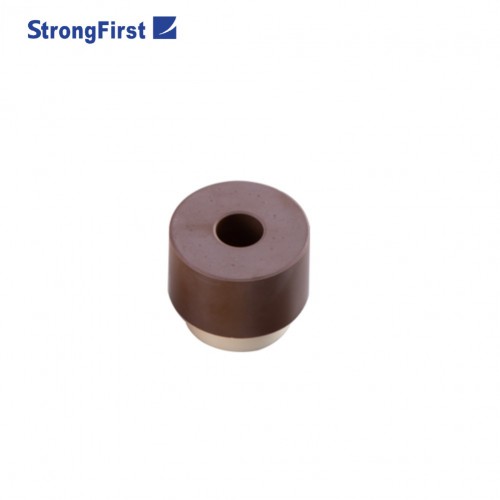

Dielectric Resonator components include three different modes, such as TEM mode, TE mode, and TM mode. They are not only have advantageous of high Q value, serialization of temperature coefficient, and serialization of dielectric constant; but also, with design flexibility for customization. Because of these advantages, dielectric resonator elements are commonly designed for LNB, Doppler response, base stations, and Repeaters....
StrongFirst Dielectric Resonator Reduces the size of microwave devices. Low loss and high dielectric constant.
1. High purity, high density ceramics minimize wastage.
2. High dielectric constant makes possible the miniaturization of microwave circuits. Temperature-compensated dielectric constant enables stable microwave oscillators.
3. The high purity and smooth surface of the ceramics make them ideal for MIC applications.
4. Various shapes are available to meet the needs of a custom application.
• Satellite antenna (BS/CS Converters)
• Burglar alarms
• Multichannel microwave communication system
• Radar systems
• Speed guns
• Mobile phone systems
• CATV converters
• Measuring equipment
dielectric resonator manufacturer:StrongFirst
The microwaves are confined inside the resonator material by the abrupt change in permittivity at the surface, and bounce back and forth between the sides. At certain frequencies, the resonant frequencies, the microwaves form standing waves in the resonator, oscillating with large amplitudes.
PART NO. SYSTEM:Dielectric Resonator(TE01 Mode Higher Freq.Dielectric Resonator)
|
S |
DR |
XXXXX |
X |
XXX |
X |
X |
/XX |
XXX |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
No.EXPLANATION:
|
1 |
STRONG Brand Marking |
|
2 |
Dielectric Resonator |
|
3 |
ResonantFrequency:MHZ |
|
4 |
(Mode:Stepped)B.C.D: B（Step with support)C（RING)D（DISK) |
|
5 |
Outer Diameter:mm |
|
6 |
Relative Dielectric Constant(D F I) |
|
7 |
Temperature Coefficient(1,2,5,10): 1.(T.C.):1+/-1 ppm/C. 2.(T.C.):2+/-1 ppm/C. 5.(T.C.):5+/-1 ppm/C.10.(T.C.):10+/-1 ppm/C. |
|
8 |
Support Height:mm |
