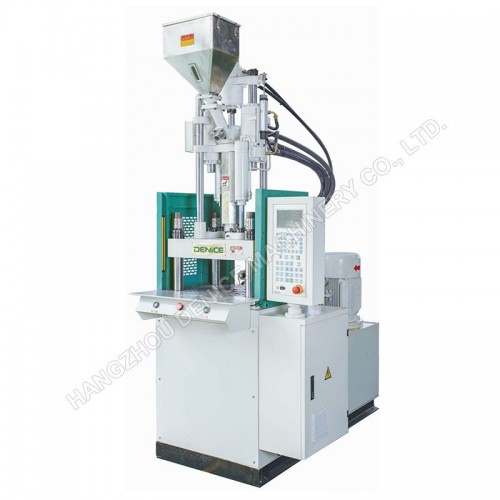

Vertical injection molding machine DV-400
If You Have Any Question On Vertical Injection Moulding Machine Working, vertical Screw Type Injection Moulding Machine, We Will Give The Professional Answers To Your Short Questions.
*Standard Style of DENICE DV Vertical Injection Machine
*Vertical clamping, vertical injection, safe and prevent mold from weight, it fit for inserts plastic molding.
*Human oriented design, different types machines to select, more closely to clients’different requirement.
|
Specification |
|||||
|
Model |
Unit |
DV-250 |
|||
|
( Injection Unit ) |
Screw diameter |
mm |
Ф25 |
Ф28 |
Ф32 |
|
|
Maximum injection pressure |
Kg/cm2 |
1814 |
1446 |
1107 |
|
|
Theoretical shot volume |
cm3 |
49 |
61 |
80 |
|
|
Maximum shot weight（PS） |
g/Oz |
45(1.6) |
56（2.0） |
74（2.6） |
|
|
Injection rate |
cm3/sec |
37 |
46 |
60 |
|
( Clamping Unit ) |
Clamping force |
ton |
25 |
||
|
|
tie bar distance |
mm |
335 × 225 |
||
|
|
Minimum mold thickness |
mm |
100/180（Can be customized according to customer requirements） |
||
|
|
Opening stroke |
mm |
180 |
||
|
|
Open daylight |
mm |
280/360（As required） |
||
|
|
Ejector force |
T |
1.3 |
||
|
|
Ejector stroke |
mm |
35 |
||
|
( Others ) |
Pump motor power |
Kw |
4 |
||
|
|
Hydraulic system pressure |
Kg/cm2 |
140 |
||
|
|
Barrel heating power |
Kw |
2.7 |
||
|
|
Total wattage |
Kw |
6.7 |
||
|
|
Oil tank capacity |
L |
120 |
||
|
|
Machine weight (approx.) |
T |
0.9 |
||
|
|
Machine dimensions(approx.) |
m |
1.6×0.9× 2.3 |
||
