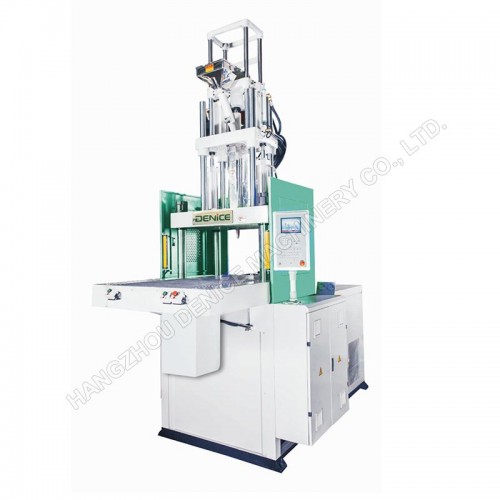

hybrid vertical injection molding machine DV-1600S
If You Have Any Question On Hybrid Vertical Injection Moulding Machine, Hybrid Vertical Injection Molding Machine, We Will Give The Professional Answers To Your Short Questions.
Single Slide Table Style of DV-S Series:
* Vertical four column clamping, vertical injection, ease to put and take out inserts.
* Single slide design, item put and take out of the work area, which shares ease operate, high safety character.
* Four column single slide table machine (1 upper mold, 1 bottom mold)
We are injection molding machine manufacturers.
|
Specification |
||||
|
Model |
Unit |
DV-1200S |
||
|
( Injection Unit ) |
Screw diameter |
mm |
Ф46 |
Ф52 |
|
|
Maximum injection pressure |
Kg/cm2 |
2193 |
1716 |
|
|
Theoretical shot volume |
cm3 |
365 |
467 |
|
|
Maximum shot weight（PS） |
g/Oz |
325（11.4） |
415（14.6） |
|
|
Injection rate |
cm3/sec |
123 |
157 |
|
( Clamping Unit ) |
Clamping force |
ton |
120 |
|
|
|
Sliding Table size |
mm |
590×700 |
|
|
|
Sliding Table Stroke |
mm |
760 |
|
|
|
tie bar distance |
mm |
600×400 |
|
|
|
Minimum mold thickness |
mm |
200/300（Can be customized according to customer requirements） |
|
|
|
Opening stroke |
mm |
300 |
|
|
|
Open daylight |
mm |
500/600（As required） |
|
|
|
Ejector force |
T |
4.0（Can be customized according to customer requirements） |
|
|
|
Ejector stroke |
mm |
73 |
|
|
( Others ) |
Pump motor power |
Kw |
15 |
|
|
|
Hydraulic system pressure |
Kg/cm2 |
140 |
|
|
|
Barrel heating power |
Kw |
7 |
|
|
|
Total wattage |
Kw |
22 |
|
|
|
Oil tank capacity |
L |
400 |
|
|
|
Machine weight (approx.) |
T |
6.8 |
|
|
|
Machine dimensions(approx.) |
m |
3.5×1.1× 3.6 |
|
