tube shoulder making machine DV-600DS
We Provide Tube Shoulder Making Machine And DENICE Tube Shoulder Making Machine High Quality, If You Need, Welcome To Contact Us To Know More.

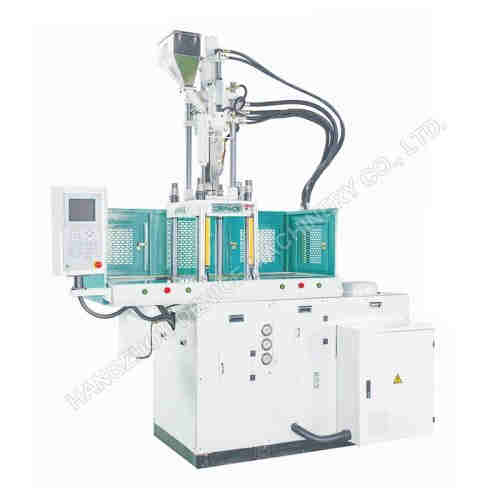

Double Slide Table Style of DV-DS Series
*Vertical clamping, vertical injection structure design, fit for inserts plastic products molding.
*Double slide table, when it runs, two bottom molds with one upper mold slide left and right by turn, one mold operate out of the working area, upgrade work efficiency up to 30%, possess more operation
|
Specification |
|||||
|
Model |
Unit |
DV-250DS |
|||
|
( Injection Unit ) |
Screw diameter |
mm |
Ф25 |
Ф28 |
Ф32 |
|
|
Maximum injection pressure |
Kg/cm2 |
1814 |
1446 |
1107 |
|
|
Theoretical shot volume |
cm3 |
49 |
61 |
80 |
|
|
Maximum shot weight（PS） |
g/Oz |
45(1.6) |
56（2.0） |
74（2.6） |
|
|
Injection rate |
cm3/sec |
37 |
46 |
60 |
|
( Clamping Unit ) |
Clamping force |
ton |
25 |
||
|
|
Sliding Table Stroke |
mm |
350 |
||
|
|
tie bar distance |
mm |
355 × 225 |
||
|
|
Minimum mold thickness |
mm |
100/180（Can be customized according to customer requirements） |
||
|
|
Opening stroke |
mm |
180 |
||
|
|
Open daylight |
mm |
280/360（As required） |
||
|
|
Ejector force |
T |
1（Can be customized according to customer requirements） |
||
|
|
Ejector stroke |
mm |
55 |
||
|
( Others ) |
Pump motor power |
Kw |
4 |
||
|
|
Hydraulic system pressure |
Kg/cm2 |
140 |
||
|
|
Barrel heating power |
Kw |
2.7 |
||
|
|
Total wattage |
Kw |
6.7 |
||
|
|
Oil tank capacity |
L |
120 |
||
|
|
Machine weight (approx.) |
T |
1.2 |
||
|
|
Machine dimensions(approx.) |
m |
1.5×1.8× 2.4 |
||
