plastic handle rotary table injection molding machine DV-2500.2R
Plastic Zipper Making Machine, Fully Automatic Plastic Injection Moulding Machines | Hangzhou Denice Machinery We Provide Plastic Zipper Making Machine And Fully Automatic Plastic Injection Moulding Machines, Our Company Has Been Committed To Supply Personalized Product Solutions To Customers,pla Consult Us.

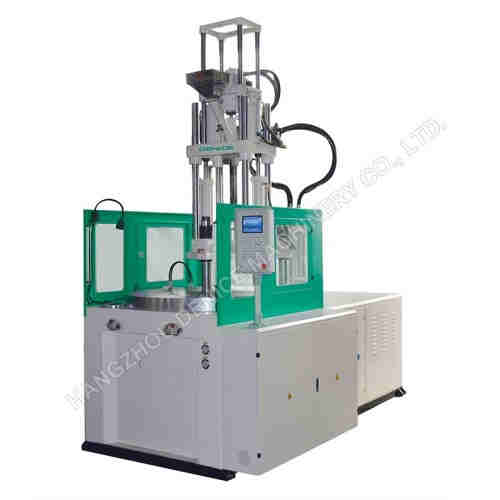

DV-2500.2R vertical injection molding machine：
Vertical clamping, vertical injection, safe and prevent mould from weigh, it fit for inserts plastic molding.
Multi station rotary table machine, （1 upper mold, 2 to 4 bottom mold）safe and time saving, increase production efficiency up to 50% to 100%.
|
Specification |
||||
|
Model |
Unit |
DV-2500.2R |
||
|
( Injection Unit ) |
Screw diameter |
mm |
Ф60 |
Ф65 |
|
|
Maximum injection pressure |
Kg/cm2 |
1588 |
1353 |
|
|
Theoretical shot volume |
cm3 |
706 |
829 |
|
|
Maximum shot weight（PS） |
g/Oz |
630（22.2） |
740（26） |
|
|
Injection rate |
cm3/sec |
189 |
221 |
|
( Clamping Unit ) |
Clamping force |
ton |
250 |
|
|
|
Rotary Table Diameter |
mm |
1800 |
|
|
|
tie bar distance |
mm |
- |
|
|
|
Minimum mold thickness |
mm |
350/450（Can be customized according to customer requirements） |
|
|
|
Opening stroke |
mm |
450 |
|
|
|
Open daylight |
mm |
800/900（As required） |
|
|
|
Ejector force |
T |
7（Can be customized according to customer requirements） |
|
|
|
Ejector stroke |
mm |
145 |
|
|
( Others ) |
Pump motor power |
Kw |
22 |
|
|
|
Hydraulic system pressure |
Kg/cm2 |
140 |
|
|
|
Barrel heating power |
Kw |
14.25 |
|
|
|
Total wattage |
Kw |
36.25 |
|
|
|
Oil tank capacity |
L |
850 |
|
|
|
Machine weight (approx.) |
T |
12.7 |
|
|
|
Machine dimensions(approx.) |
m |
3.9×2.3× 5.6 |
|
