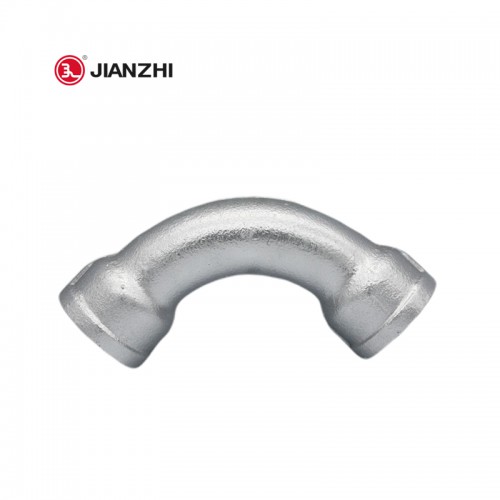

Female Bend 90 Degree Fig.2
Visits: 72
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: Female Bend 90 Degree Fig.2
    Type New
    Date: 26-07-2021
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1000 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     Female Bend 90 Degree Fig.2

    Size: 1/8''-6''(DN6-DN150)

    Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

    Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

    Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

    Product Dimensions

    Bend refers to the pipe fittings that change the direction of the pipeline in the pipeline system. Elbow by angle, there are 45 °, 90 °, 180 ° three most commonly used, this product is 90 degrees of the female bend, mainly used in plumbing system installation. Bend female in addition to corrosion resistance, but also has excellent mechanical resistance to compression, traction and bending stress.



    We are a professional manufacturer of malleable iron parts, if you have questions, please contact us.

    Technical Data

    Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

    Maximum Temperature: 200°C (392°F)

    Tensile Strength: 350MPA

    Hardness: HB150 (Brinell)

    Elongation Rate: 10%

    Suitable Applications: Water, Oil, Gas, Petro-Chemical

    Material: Malleable Iron
