Product details
hot-dip galvanized steel grating For Drainage Covers
Visits: 53
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: xingbei
    Specifications: hot-dip galvanized steel grating For Drainage Covers
    Type New
    Date: 14-08-2021
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     hot-dip galvanized steel grating For Drainage Covers

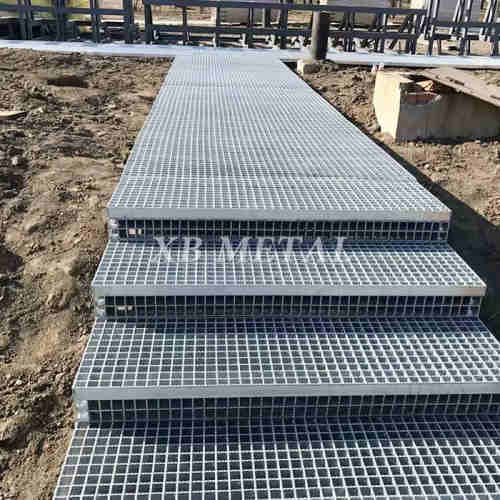

    The steel grating adopts the world-class equipment from the Italian company ORSOGRIL. The flat steel and the twisted square steel are distributed at certain intervals. The computer-controlled high-voltage resistance welding presses the twisted square steel into the flat steel to obtain a firm welding joint. The board surface is flat and contains steel grating with extremely high strength.

    Parameter

    Data

    Bear Bar Type

    Flat Bar, I-Bar, Serrated Bar, etc

    Bearing Bar Size

    20x5mm, 30x3mm, 30x5mm, 40x3mm, 40x5mm, 50x5mm, etc

    Bearing Bar Spacing

    30mm, 33mm, 40mm, 50mm or other size

    Cross Bar Type

    Twisted steel bar, Flat bar

    Cross Bar Size

    6mm, 8mm or other

    Cross Bar Spacing

    50mm or 100mm

    Weld Way

    Welded , Pressure-locked , Swage Locked

    Material Grade

    Mild Steel(Q235B), Stainless Steel 304 or 316, etc

    Surface treatment

    Hot dipped Galvanized, Spray paint or other

    Standards

    Steel Grating Standard

    Steel Material Standard

    HDG Coating Standard

    China

    YB/T4001-2007

    GB700-88

    GB/T13912-92

    USA

    ANSI/NAAMM(MBG531-88)

    ASTM-A36

    ASTM-A123

    UK

    BS4592-1987

    BS4360(43A)

    BS729

    Australia

    ASl 657-1992

    AS3679

    ASl650

    The bearing flat steel standard of steel grating should be selected according to the practical bearing requirements. Commonly used standards are: 25x3mm, 25x4mm, 25x5mm, 30x3mm, 30x4mm, 30x5mm, 32x3mm, 32 x5mm, 35x3mm, 35x5mm, 40x3mm, 40x4mm, 40x5mm, 50x3mm 50x5mm, 60x5mm, 65x5mm, etc. It can also be customized according to customer requirements.

    PRODUCT FEATURES

    Steel grating is made by welding with flat steel and bars with certain distances.It goes through cutting, opening, edging and other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties.The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
