Defensive Barrier Military Defensive Barrier Military Bastion Manufacturer Military Bunker
Product Description

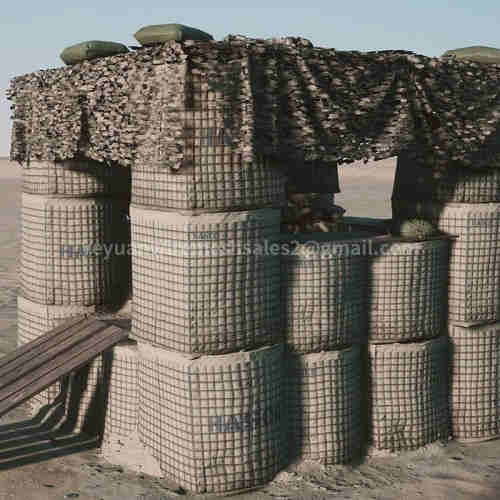

Hesco defense wall also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated, multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, it is widely used for military fortification and flood control. Accessories Supplied With Carrier Units.
|
Product Name |
Hesco defense wall |
|
Product Type |
|
|
Material |
Galvanized steel wire or Galfan/zinc-5%aluminum wire |
|
Wire Diameter |
4.0-5.0mm |
|
Geotextile |
250g-400g |
|
Geotextile colour |
sand clolor, Brown, Gray,and Military Green. |
|
Mesh hole |
76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm×100mm |
|
Model |
Height(M) |
Width(M) |
Length(M) |
Number of cells |
|
YY-1(Mil 1) |
1.37 |
1.06 |
10 |
5+4=9 cells |
|
YY-2(Mil 2) |
0.61 |
0.61 |
1.21 |
2 cells |
|
YY-3(Mil 3) |
1.0 |
1.0 |
10 |
5+5=10 cells |
|
YY-4(Mil 4) |
1.0 |
1.5 |
10 |
5+5=10 cells |
|
YY-5(Mil 5) |
0.61 |
0.61 |
3.05 |
5 cells |
|
YY-6(Mil 6) |
1.68 |
0.61 |
3.05 |
5 cells |
|
YY-7(Mil 7) |
2.21 |
2.13 |
27.74 |
5+4+4=13 cells |
|
YY-8(Mil 8) |
1.37 |
1.22 |
10 |
4+5=9 cells |
|
YY-9(Mil 9) |
1.0 |
0.76 |
9.14 |
6+6=12 cells |
|
YY-10(Mil 10) |
2.12 |
1.52 |
30.5 |
5+5+5+5=20 cells |
Hesco defense wall can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints，protection of existing structures, highway traffic management, flood control, river courses, emergency flood control deployment, erosion control, retaining walls
Explosion-proof wall characteristics
1. Easy to handle and install
2. High strength and impact resistance
3. Long life, normal use
4. It can be filled with sand, cement, stones, and soil.
