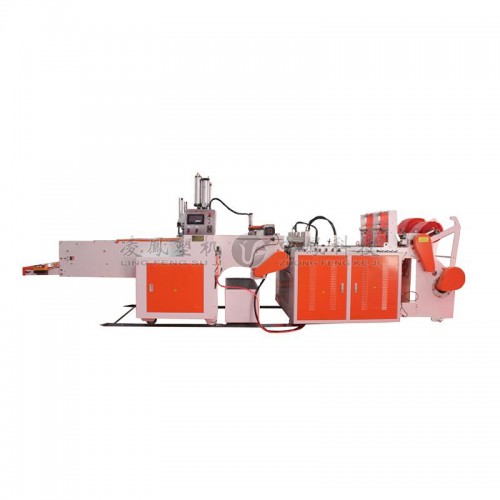

High Speed full-automatic Double Line T-shirt Bag Making Machine

Feature and Advantage

1. Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.

2. Adopted patented unwind stand for avoiding tension stretching plastic film

3. Unwind Stand equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.

4. Equipped with specialized pneumatic Expandable Scroll fastens the film roller, easy operation

5. Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.

6. Hot cutter heating independently separated with hot sealing

7. Cutter and sealing knife "90°turnover" device and heating cloth roll design, easy for clean and maintenance, also ensure the safety.

8. High-speed take-off shifter device makes bags output smoothly and fast.

9. Adopted patented swing device avoided hot sealing position sticking together

10. The machine adopted plugging type IC circuit auto-controlled system for easy replacement.

11. Servo-motor accurately control Robot hand moment position

12. In-line automatic punching machine use air pressure to push oil hydraulics without noise

Technology Parameter

Model No.	LF-HDFP-350x2	LF-HDFP-450x2	LF-HDFP-500x2
The max width of the bag (mm)	350	450	500
The length of the bag (mm)	280-650	300-750	350-900
Bag making speed (pc/min)	100-300	100-300	100-300
Film thickness (mm)	0.02-0.08	0.02-0.08	0.02-0.08
Total power/Work power (kw)	16.28/3.4	19.8/4.2	24.3/4.6
Gas consumption (m3/min)	0.6	0.7	0.7
Bag making roll quantity (roll)	2	2	2
Dimensions(LxWxH mm)	5810x1580 x1950	6010x1780x1950	6510x1980x1950
Weight (kg)	2376	2764	3246
Main motor power (kw)	1.5	2.2	2.2
Conveyer inverter power (kw)	4 x0.75	4 x0.75	4 x0.75
Inverter quantity (sets)	5	5	5
Servo motor power (kw)	3.8	4.4	4.4
Servo motor quantity (sets)	3	3	3
Pressure Cylinder Model	KPB-80-165-20-5T	Same type of products More... Φ610 Induction $ 1.00 15tons Mecanum $ 1.00 AH series slurr $ 1.00 Automatic EPS S $ 1.00 Automatic Rockw $ 1.00 Comment Comment on the content: Enter verification code: Seller information Langfang Zhongfeng Mechanical Technology Co., Ltd. Name Jiao Mao Feng Telephone: +86 316 5391000 Fax: Mobile: Location: Hebei Langfang Address: Hancun Village, Daliuzhen Town, Wenan County Latest products Full-automatic Double Line T-shirt Rolling Automatic Draw Tape Bag-on-rolling Making High Speed Full-automatic Single Line Seal High Speed full-automatic Double Line T-sh Full-automatic Four-roll Feeder Double Lin Full-automatic Four-roll Feeder Double Lin Advertise | About Us | FAQs | Premium Membership | Terms of Use | Contact Us Copyright © TopBuySell.com
