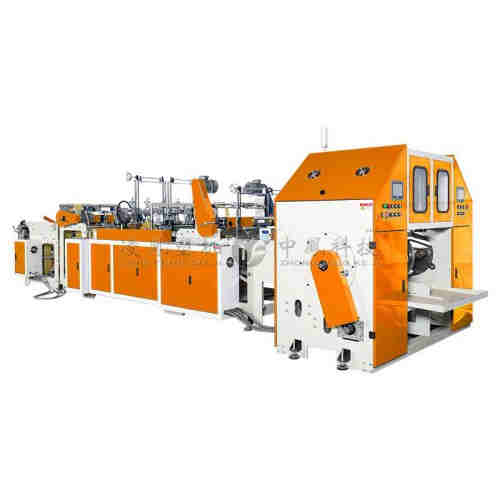

Full-automatic Double Line T-shirt Rolling Bag Making Machine with Core
Technology Parameter
|
Model No. |
LF-JDAP-350*2 |
|
Lane Quantity |
Two lanes |
|
Bag making width |
200-350mm |
|
Bag making length |
300-600mm |
|
Bag making speed |
60-150pcs/min (T-shirt rolling bag with core) 50-190pcs/min (Flat seal rolling bag with core) |
|
Max line speed of film |
80 m/min |
|
Bag making thickness |
0.006-0.025mm |
|
Bag making methods |
T-shirt rolling bag & Flat seal rolling bag with core |
|
Machine Weight(L*W*H) |
2500kg |
|
Overall Size |
6200*2200*1800 |
We have Plastic Bag Making Machine For Sale.
Configuration Details
|
Items |
Parameter |
|||||||||
|
Machine main controller |
PLC & Touch Screen operation system, Power Switch24V,100w (Taiwan Brand) |
|||||||||
|
Power of main motor |
1.1kw, 380V (Chinese Brand) |
|||||||||
|
Main motor controller |
1.5kw 380v Inverter controller (Chinese Brand) |
|||||||||
|
Bag making length controller |
3.7kw servo motor, roller diameter 80mm, length 350mm. |
|||||||||
|
Temperature controller |
Four Areas Heating, Including Warning Device |
|||||||||
|
Temperature control precision |
±1℃ |
|||||||||
|
Total heating power |
Seal knife heating power tube 1.2kw(220V) , length 350mm, diameter 16mm. Seal knife 350mm. Bottom base heating 300W(110V) . |
|||||||||
|
Releasing Film Roll Method |
550w gear motor |
|||||||||
|
Releasing Motor Inverter |
0.75kw Chinese Brand |
|||||||||
|
The downtime of break controller |
Photoelectric Sensor (Panasonic) |
|||||||||
|
Loading Method |
Pneumatic, 100*250mm Cylinder. |
|||||||||
|
Conveyor Roll Motor |
550w Horizontal type AC motor |
|||||||||
|
Conveyor Roll Inverter |
0.75kw Chinese Brand |
|||||||||
|
Traction Motor |
550wHorizontal type Ac motor |
|||||||||
|
Traction Inverter |
0.75kw Chinese Brand |
|||||||||
|
ESP device |
Width 400mm |
|||||||||
|
Winding Controller |
PLC(2416MT) & Touch Screen(7 inch) control, 24V electric power(100w). |
|||||||||
|
Winding Motor Power |
550w, AC motor |
|||||||||
|
Winding motor controller |
0.75kw inverter controller*2, Chinese brand |
|||||||||
|
Turn plate controller |
350A Stepping motor |
|||||||||
|
Contactor Switch and Mid relay |
Schneider, France |
|||||||||
|
Magnetic valve |
SMC, Japan |
|||||||||
|
Bearing |
| |||||||||
