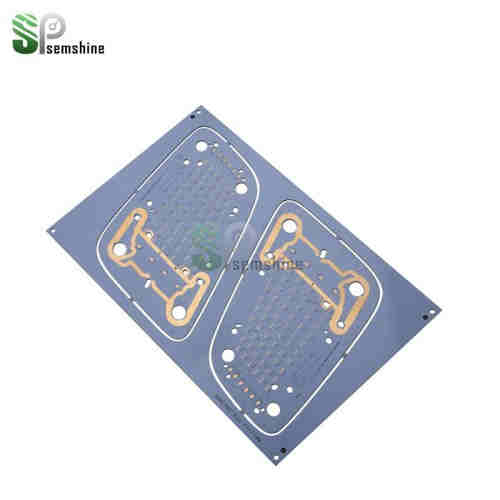

Ultra high thermal conductivity aluminum-PCB
Visits: 94
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: SEMSHINE
    Specifications: aluminum base pcb
    Type New
    Date: 24-09-2021
    Business type: Manufacturing
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 10000 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     Ultra high thermal conductivity aluminum-PCB

    PCB description:

    Model Number: aliuminum pcb

    aluminum pcb manufacturer:Shenzhen Semshine Tech Co.,Ltd

    Place of Origin: Shenzhen, China

    Brand Name: SEMSHINE

    Base Material: Aluminum high TG

    Layers: 1L

    Copper Thickness: 1oz

    Board Thickness: 0.3mm

    Min. Hole Size: 0.08mm

    Min. Line Width: 2 Mil

    Min. Line Spacing: 0.1um(3 Mil)

    Surface Finishing: ENIG

    Color: White Solder mask and Black silkscreen

    https://www.shinepcba.com/aluminum-pcb.html

    Item Aluminum substrate specifications:

    Item

    Unit

    Specification

    Test condition

    Insulation thickness

    pm

    Max Min

    150

    70

    —

    Solder resistance (288*C)

    Sec.

    Min

    600

    IPC-TM-650 3.10.1.12

    Thermal shock

    288°C*107cycle

    Min

    6 Times

    IPC-TM-650 2.4.13.1

    Peel strength (Normal status)

    Ib/in

    Min

    7.5

    IPC-TM-650 2.4.8

    Breakdown Voltage

    V/mil



    750

    IPC-TM-650 2.5.6

    Volume resistivity (Normal status >E+14)

    Q • cm



    1013

    IPC-TM-650 2.5.17.1

    Surface resistivity (Normal status >E+12)

    Q

    一

    IO”

    IPC-TM-650 2.5.17.1

    Dielectric constant







    IPC-TM-650

    1 MHz Normal status

    —



    8.0

    2.5.5.3

    2.5.5.5

    1 GHz Normal status





    7.6

    2.5.5.S

    Dissipation Factor







    IPC-TM-650

    1 MHz Normal status





    0.005

    2.5.5.3

    2.5.5.5

    1 GHz Normal status





    0.003

    2.5.5.9

    Water absorption

    %



    0.2

    IPC-TM-650 2.6.2.1

    Thermal conductivity









    (measured on insulation layer only)

    W/mcC
