WA Heavy-duty Slurry Pump

What is Heavy Duty Slurry Pump?

WA series heavy-duty slurry pump is cantilevered, horizontal, natural rubber or hard metal lined centrifugal slurry pumps. They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industry department.

Slurry Pump Specifications

Size: 1" to 22"
Capacity: 3.6-5400 m3/h
Head: 6-125 m
Handing solids: 0-130mm
Concentration: 0%-70%
Materials: Hyper chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel etc.

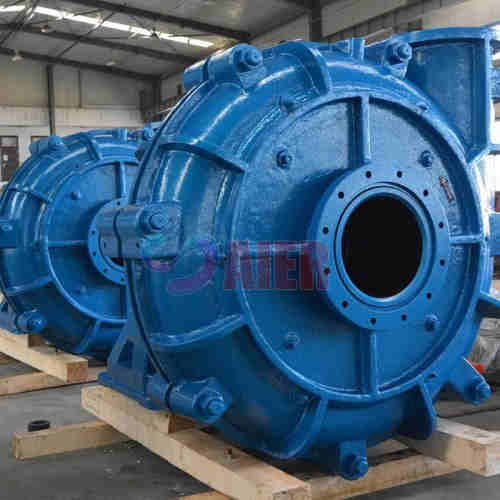

AIER® WA Heavy Duty Slurry Pump

Heavy Duty Pump Typical Applications

SAG mill discharge, ball mill discharge, Rod mil discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, sugar beet, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, slag granulation, phosphoric acid, coal, flotation, process chemical, pulp and paper, FGD, cyclone feed, etc.

Features of Slurry Pump

1. The frame plate for WA series pumps has interchangeable hard metal or pressure moulded elastomer liners. The impellers are made of hard metal or pressure moulded elastomer liners.

2. The shaft seals for WA series can be packing seal, centrifugal seal or mechanical seal.

3. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. There are many drive modes for option, such as V-belt, flexible coupling, gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc. Among them, the flexible shaft coupling drive and V-belt feature of low cost and easy installation.

Pump Notation
