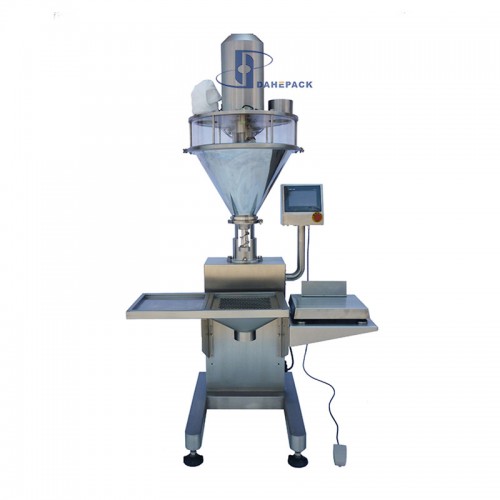

Manual Spice Powder Filling Machine
Semi Automatic Filling Machine Description
Main Feature:
1 Made in Stainless steel. it is good for Food ,pharmaceutic,chemical packing
2 Combined Hopper or Level Split Hopper both fine for cleaning
3 The filling weight can be saved on the Touch Screen.
4 The machine Can make Free flow ability and non free flow ability Powder.
5 The machine can pack different material by changeover dosing device
6 Servo Motor control the filling to keep the dosing High accuracy.
7 The machine has the Vibrating and lift system
Main Technical Date
|
Model |
DH-B2-1L |
DH-B2-10L |
|
Packing weight |
1-500g |
10-5000g |
|
Packing accuracy |
Less 100g ; ≤ ± 2g 100g-500g; ≤ ±0.1% |
less 100g ≤ ± 2g 100-500g ≤±0.1; Over 500g ≤ ± 0.05% |
|
Filling speed |
40-120 times per min |
40-120times per min |
|
Power supply |
3P AC208-415V 50/60hz |
3P AC208-415V 50/60hz |
|
Total Power |
0.93kw |
1.4kw |
|
Total weight |
130kg |
260kg |
|
over size |
800*790*1900 |
1140*970*2030mm |
|
Hopper Volume |
25L(Enlarge 35L) |
50L(Enlarge 70L) |
We supply Dahe Powder Filling Machine, more please click here
