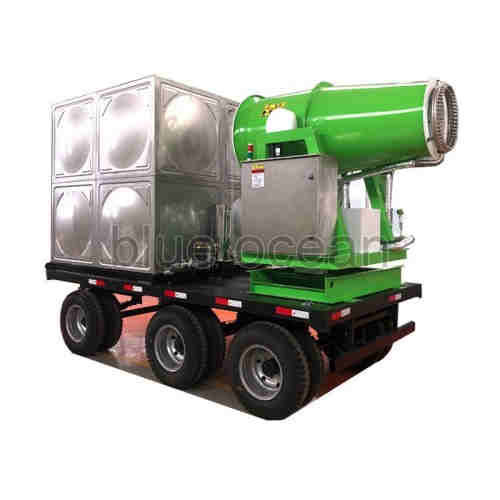

This equipment is a mobile ultra-fine fog cannon, composed of a water tank (8m³), a trailer, and a fog cannon.

The spraying distance is 60 meters. The equipped double pumps of Nanfang Pump Industry extend the continuous working time of the Mobile ultra-fine fog 60m fog cannon machine to 24 hours and the pressure can reach 4Mpa, and the sprayed mist particles are 30 microns.

The fan adopts 18.5KW energy-saving and noise-reducing fan, and the noise of the whole equipment is lower than 85db when started. This time the nozzle requirements are also very strict, achieving the effect that the mist blown out is not wet. If the nozzle is strict, the filtration must be strict. Poor water quality will block the nozzle.

The whole equipment is equipped with a set of filtration system. There is also an automatic drain function, which automatically drains when shut down. In order to better use in winter, the whole pipeline and water pump have made strict insulation equipment. In terms of rotation, the Siemens plc system is used to individually control the rotation of the equipment, so that the rotation system can swing left and right at any time, bid farewell to the era of limit switches. The all-imported Schneider adopted in the power distribution system ensures the stability of the overall equipment.
