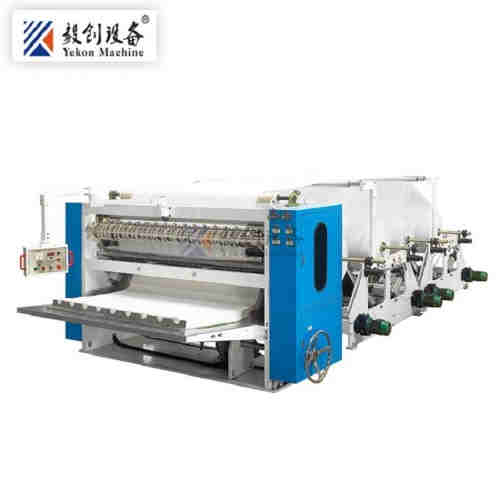

FTM-200/10T Folding Machine

Folding Unit：

1.Size of folding roller ：2100mm (width),material is 45# steel by coated Cr.

2.Applicable roll quantity: 12~16GSM（2ply/3 ply）tissue paper

3.V Fold Tissue Paper Folding Machine Finished product open size：200±2mm X(150~200)

4.Finished product folding size：100

±2mm X(150~200)

5. Folding type: V folding

6. Speed of folding: 500~1000sheet/min/line

7. Folding roller is used double air valve structure, material is hard-wearing nylon.

8. Transverse paper-cutting type: the upper roll cutter is 45#steel, surface is coated by hard Cr..

upper blade is 1 integral high speed- steel fixed cutter front and back. Material is SKD-II, hardness HRC 58~60;

Underside blade are 3 integral high-speed cross cutters , hardness HRC 60~62;

9. auto Facial Tissue paper folding machine Circular blade：there are 2pcs blade each front and back side.

10. Edge embossing unit: underside cylinder is bearing steel, hardness HRC 58~60,coated hard Cr.

34edge embossing each front and back side. Material is bearing steel.

11. Main frame is panel structure, thickness is 50mm.

Embossing Unit：2 pairs embossing roller.

V Fold Tissue Folding Machine Unwind Unit：

1. Width of parent paper：2050mm

2. Max diameter of parent paper：1200mm

3.Core inside diameter：76.2mm

4. 2 parent paper roll controlled with separate motor.

5.Web tension controlled：manually

6.Parent roll axes regulation：manually

7. 2 unwinding shaft , include kinetic taper sleeve and locating sleeve.

8. Panel structure ,thickness is 20mm.

Full Auto Facial Tissue Packaging Machine Transmission：

1. Transmission are all by gear and simultaneous belt.

2. Folding roller、cutter roller etc the brand of bearings of main parts are “HAERBIN”、”WAFANGDIAN” brand.

3. Mounted bearing is “LK” brand.

Control Unit：

1.Adjusted speed by inverter. PLC controlled and touch screen are SIEMENS brand.

2. Counting system：electric eye induction, set up by touch screen, count by the left and right dislocation

unit or ink unit.

3. Jogging button and emergency button installed on machine

4. Electrical control

1) Disconnector protection switch electromagnetic contactor are Schneider brand.

2) Control buttons is used Schneider.

3) Relay is used SCHNEIDER brand.

Tissue Paper Packaging Machine Vacuum control:

1. 30KW  TAIWAN roots vacuum pump    1set.  SIMENS motor .

Air-operated control:

1.Air cylinder、air valve are famous brand of China.

2.Air pressure：> 4kg/cm2 (provided by buyer)
