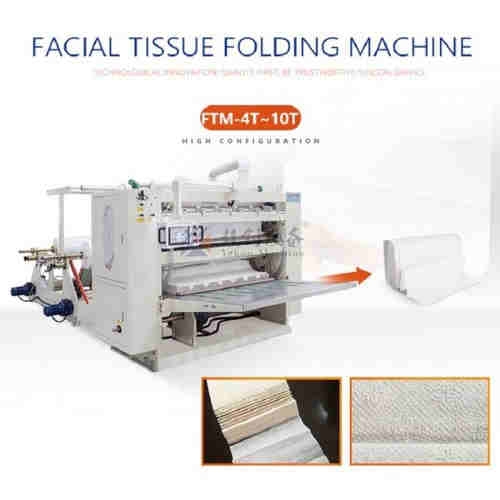

FTM-180/8T Facial Tissue Folding Machine

Folding Unit：

1.Size of folding roller ：1800mm (width),material is 45# steel by coated Cr.

2.Applicable roll quantity: 12~16GSM（2ply/3 ply）tissue paper

3.Finished product open size：180±2mm X(130~200)

4.Finished product folding size：90±2mm X(130~200)

5. Folding type: V folding

6. V paper Folding Machine Speed of folding: 500~1000sheet/min/line

7. Folding roller is used double air valve structure, material is hard-wearing nylon.

8. Transverse paper-cutting type: the roll of upper cutter is 45#steel, surface is coated by hard Cr..

top blade is 1 integral high speed- steel fixed cutter front and back. Material is SKD-II, hardness HRC 58~60;

Underside blade are 3 integral high-speed cross cutters , hardness HRC 60~62;

9. Circular blade：9 PCS slitting blades each side

10. Edge embossing unit: underside cylinder is bearing steel, hardness HRC 58~60,coated hard Cr.

16 PCS edge embossing each front and back side. Material is bearing steel.

11. Main frame is panel structure, thickness is 50mm.

auto Facial Tissue paper folding machine Unwind Unit：

1. Width of parent paper:1750mm

2. Max diameter of parent paper：1200mm

3.Core inside diameter：76.2mm

4.2 parent paper roll controlled with separate motor.

5.Web tension controlled：manually

6.Parent roll axes regulation：manually

7. 2 unwinding shaft , include kinetic taper sleeve and locating sleeve.

8. Panel  structure , thickness is 20mm.

Embossing Unit：4 embossing rollers (steel by steel or steel by rubber )

Yekon auto napkin folding machine Transmission：

1. Transmission are all by gear and simultaneous belt.

2. Folding roller、cutter roller etc the brand of bearings of main parts are “HAERBIN”、”WAFANGDIAN”brand.

3.  Mounted bearing is “LK” brand.

Facial Tissue paper folding machine China Control Unit：

1.Speed adjusted: by inverter（4kw）

2. Counting system：counter adjusted

3. Jogging button and emergency button installed on machine

4. Electrical control

1) Disconnector protection switch electromagnetic contactor is used brand TianZheng\ZhengTai.

2) Control buttons is used Schneider.

3) Relay is used OMRON.

4) Proximity switch is TAIWAN FOTEK.

napkin folding machine China Vacuum control:

1. 22KW  TAIWAN Longtech vacuum pump  ,motor is SIEMENS   1set.

Air-operated control:

1.Air cylinder、air valve are famous brand of China.

2.Air pressure：> 4kg/cm2 (provided by buyer)
