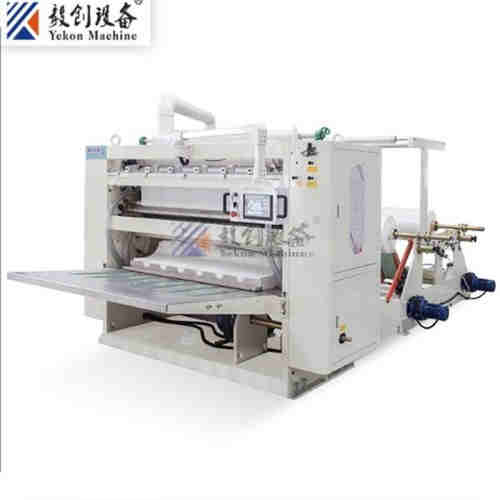

FTM-190/7T Facial Tissue Folding Machine

Folding Unit：

1．Size of folding roller ：1500mm (width)

2．Applicable roll quantity：13~25 GSM（2 ply）tissue paper

3．Finished product open size：190±2mm x（150~240）

4．Sheet Foldedd size：95±2mm x（150~240）

5．Folding type：V fold

6．Speed of folding：500~1000sheet/min/line

7．V paper Folding Machine for sale Cross cut：2 sheet high speed steel top blade，6 sheets high speed steel underside blade

8．Circular blade：6blades

Embossing Unit：

1． Embossing part: 2 pairs steel to steel or steel to rubber

2.  Edge-embossing part: 14 groups pneumatic steel against steel (bearing steel) at the front and back, independent adjustment.

V Fold Tissue Folding Machine Unwind Unit：

1．Width of parent paper：1450mm

2．Max diameter of parent paper：1200mm

3．Core inside diameter：76.2mm（3”）

4．2 parent paper roll，pneumatic loading unit

5．Web tension controlled：manually

6．Parent roll axes regulation：manually

Yekon Facial Tissue Paper Folding Machine Transmission：

1．By gear and simultaneous belt

Control Unit：

1．Speed adjusted：by inverter（5.5kw）

2．Counting system：counter adjusted

3．Jogging button and emergency button installed on machine

hand towel tissue folding machine China Vacuum System：

1．1 set roots vacuum pump of  18.5KW(made in Taiwan)

Compressed Air：

1．Air pressure：> 4kg/cm2 (provided by buyer)
