Axial Internal Pressure Type Ripple Compensator
Product Description

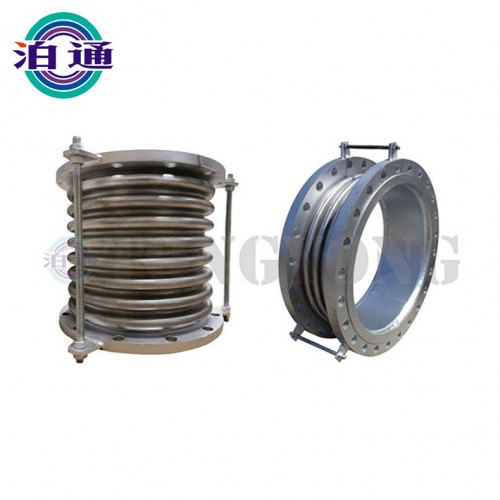

The axial internal pressure type ripple compensator（TNY Axial Expansion Joint） is composed of a bellows and two-end connection pipes. The end connection pipe is directly welded to the pipeline, or the flange is welded and then connected to the pipeline flange. The tie rod on the compensator is mainly used for rigid support during transportation or for pre-deformation adjustment of the product. It is not a load-bearing part. This type of compensator is simple in structure and low in price, so it is preferred.
The tie-down axial expansion joint consists of a single bellows element with an end connection and a tie rod system.
Regardless of accessories such as liners and caps, this model can absorb all types of motion in any length of pipe, but is mainly used to absorb axial motion and a small amount of lateral motion.
Common problems in choosing bellows compensator:
Need to provide the manufacturer with working pressure, working temperature, size, medium, compensation amount, the use of working conditions environment, choose suitable conditions of the ripple compensator products.
