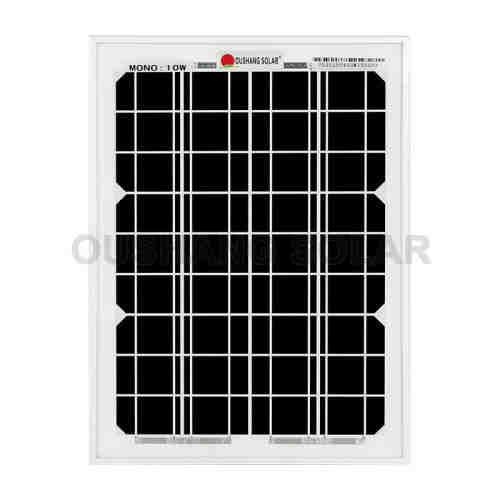

10W～30W Solar Panels solar panel OEM solar panel factory in China
Visits: 179
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: 1
    Type New
    Date: 04-11-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

    10W～30W Solar Panels    solar panel OEM    solar panel factory in China    custom solar panel manufacturer



    Product Description

    We are able to manufacture PV modules according to clients' requirements. All the things about the panel can be customized, cells, frame, color, backsheets, cables, junction boxes, dimensions, connectors, power and etc. The customized solar panels are widely used all over the world, for mobile system, small family solar system, garden solar system and etc.



    APPLICATION: Customized Solar panels with small power capacity is widely applied in auto-mobile, traffic control, garden camping and etc.



    We have customized 10W-30W solar panel types as following:



    Model

    OS-M36-10

    OS-M36-20

    OS-M36-30

    Cell

    MONO

    MONO

    MONO

    Max Power

    10w

    20w

    30w

    Max Power Voltage

    18.0V

    18.0V

    18.0V

    Max Power Current

    0.56A

    1.11A

    1.67A

    Open Circuit Voltage

    21.5V

    21.6V

    21.9V

    Short Circuit Current

    0.60A

    1.17A

    1.77A

    Number of Cells

    36(4*9）

    36(4*9）

    36(2*18）

    Size of Cells (mm)

    52*39

    78*52

    156*31.2

    Dimensions(mm)

    260*350*17

    350*520*20

    650*350*25

    Maximum system voltage

    1000VDC

    Junction Box Protection

    IP67

    IP67

    IP67

    Cables

    2.5mm2

    2.5mm2

    2.5mm2

    Connector

    MC4

    MC4

    MC4

    Max wind load

    2400Pa

    2400Pa

    2400Pa

    Max snow load

    5400Pa

    5400Pa

    5400Pa

    Operating Temperature

    -40℃~+85℃

    Power Tolerance

    ±3%



    Model

    OS-P36-10

    OS-P36-20

    OS-P36-30

    Cell

    POLY

    POLY

    POLY

    Max Power

    10w

    20w

    30w

    Max Power Voltage

    18.0V

    18.0V

    18.0V

    Max Power Current
