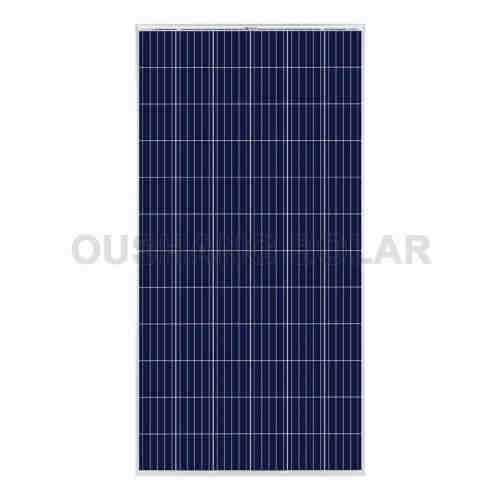

OS-P72-300W~315W Polycrystalline Photovoltaic Panel
Visits: 146
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: 1
    Type New
    Date: 04-11-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     OS-P72-300W~315W Polycrystalline Photovoltaic Panel     PV modules from China      poly solar panel supplier



    Product Description

    Key Parameters

    Cell

    Poly

    No. of cells

    72

    Rated Maximum Power (Pmax)

    300W~315W

    Junction Box

    IP67

    Maximum System Voltage

    1000V DC

    Operating Temperature

    -40℃～+85℃

    Connectors

     MC4



    Model

    OS-P72-300

    OS-P72-310

    OS-P72-315

    Cell

    POLY

    POLY

    POLY

    Max Power

    300W

    310W

    315W

    Max Power Voltage

    36V

    36.5V

    36.8V

    Max Power Current

    8.33A

    8.49A

    8.56A

    Open Circuit Voltage

    43.2V

    43.5V

    43.8V

    Short Circuit Current

    8.83A

    8.92A

    9.07A

    Number of Cells

    72(6*12)

    72(6*12)

    72(6*12)

    Size of Cells (mm)

    156*156

    156*156

    156*156

    Dimensions(mm)

    1955*992*35

    1955*992*35

    1955*992*35

    Maximum system voltage

    1000VDC

    Junction Box Protection

    IP67

    Cables

    4mm2

    Connector

    MC4

    Max wind load

    2400Pa

    Max snow load

    5400Pa

    Operating Temperature

    -40℃~+85℃

    Power Tolerance

    ±3%



    Hebei Oushang Photovoltaic Technology Co., Ltd has focus on solar panel production  since 2014. Our factory is a professional PV modules manufacturer in China. We have shipped thousands of containers of solar panels to all over the world. Our products are all working well under different sunshine conditions.



    FAQ

    Question: Is your company manufacturer or trade company?

    Answer: Manufacturer.



    Question: Is sample order available?

    Answer: Yes.



    Question: Is OEM and ODM available?

    Answer: Yes.



    Question: What is your production lead time?

    Answer: Around 2~3 weeks.



    OUSHANG SOLAR has engaged R&D, production and sales of solar module products many years. The power range of our solar panels is from 5W to 500W. Products cover monocrystalline solar panel, polycrystalline solar panel, half cell solar modules, solar controller, solar inverter, solar gel battery, solar flood light, solar street light, solar monitor system and etc. We offer OEM service.
