You are here »Home»Products »Electronics & Digital Devices»Batteries & Chargers» OS-M60-250W~280W Monocrystalline Photovoltaic Module
Product details

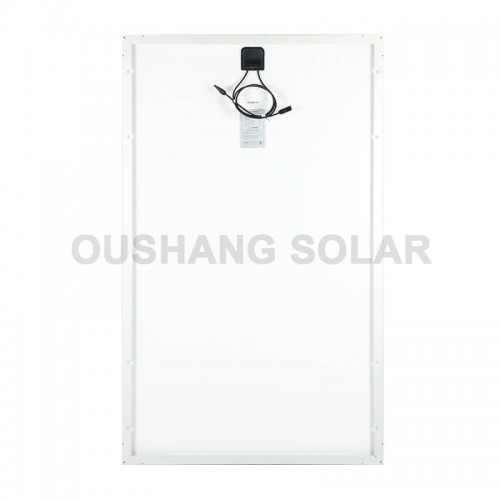

OS-M60-250W~280W Monocrystalline Photovoltaic Module
Visits: 91
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: 1
    Type New
    Date: 04-11-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

     OS-M60-250W~280W Monocrystalline Photovoltaic Module     60 cells solar panel manufacturer



    Key Parameters

    Cell

    Mono

    No. of cells

    60

    Rated Maximum Power (Pmax)

    250W~280W

    Junction Box

    IP67

    Maximum System Voltage

    1000V DC

    Operating Temperature

    -40℃～+85℃

    Connectors

     MC4



    Model

    OS-M60-250

    OS-M60-270

    OS-M60-280

    Cell

    MONO

    MONO

    MONO

    Max Power

    250W

    270W

    280W

    Max Power Voltage

    30.5V

    31.5V

    31.5V

    Max Power Current

    8.20A

    8.57A

    8.89A

    Open Circuit Voltage

    36V

    38.05V

    38.86V

    Short Circuit Current

    9.02A

    9.08A

    9.22A

    Number of Cells

    60(6*10)

    60(6*10)

    60(6*10）

    Size of Cells (mm)

    156*156

    156*156

    156*156

    Dimensions(mm)

    1640*992*35

    1640*992*35

    1640*992*35

    Maximum system voltage

    1000VDC

    Junction Box Protection

    IP67

    Cables

    4mm2

    Connector

    MC4

    Max wind load

    2400Pa

    Max snow load

    5400Pa

    Operating Temperature

    -40℃~+85℃

    Power Tolerance

    ±3%



    Hebei Oushang Photovoltaic Technology Co., Ltd has focus on solar panel production in China since 2014.The auto production is able to supply three containers per day. We have shipped thousands of containers of solar panels to all over the world. Our products are exported to Europe, Middle East, South America, Southeast Asia and Africa. The factory and products are qualified by TUV.
