Double Head CNC Lathe DNL061/DNL062
Visits: 51
    • Price: $ 1,000.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand:
    Specifications: Double Head CNC Lathe
    Type New
    Date: 13-12-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

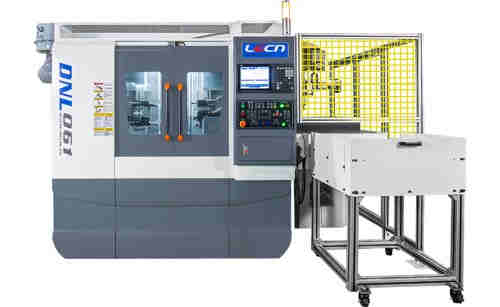

     Double Head CNC Lathe DNL061/DNL062

    Double Head CNC Lathe Description

    Both ends of the one clamping are processed at the same time or independently, the compact vertical cutter double head CNC lathe with 100-480 mm turning length is suitable for turning, drilling, tapping and boring of precision shaft parts. Compared with traditional CNC lathe, one is equivalent to the machining efficiency of two machines, and the coaxiality can reach μ level. High precision, high efficiency, it can carry with truss or joint robot and automatical line.

    Technical Parameters

    ITEM

    DNL061

    DNL062

    Max Body Rotate Diameter, mm

    Ø200

    Ø200

    Clamping Diameter Scope, mm

    Ø15-Ø50

    Ø15-Ø50

    Turning Length Scope, mm

    100-300

    300-480

    Spindle Clamp Diameter, mm

    Ø50

    Ø50

    X/Z Travel , mm

    280/180

    280/180

    X/Z Fast Speed, m/min

    18/24

    18/24

    Fool Type

    cutter

    cutter
