NCM66220102-243Ah Lithium Ion Battery
Visits: 100
    • Price: $ 1.00 Piece(s) / each
    (0 means negotiable)
    Freight fee: Seller affords freight fee
    Brand: Lithium Storage
    Specifications: 1
    Type New
    Date: 11-11-2021
    Business type: Retail
    Seller details: See Right Sidebar section
    Quantity: Piece(s)( Stock 1 Piece(s))

    Tip: Welcome to use TopBuySell Intermediary Guarantee of Payment service to secure transactions between buyers and sellers. Details: topbuysell.com/membership/premium-service.php

    Note: When using other ways of payment but not our Intermediary Guarantee of Payment service, buyers and sellers have full responsibility & liability for any risks and financial loss. In this case, we suggest buyers and sellers contact each other directly for details including authentication to avoid scams.
    Product details

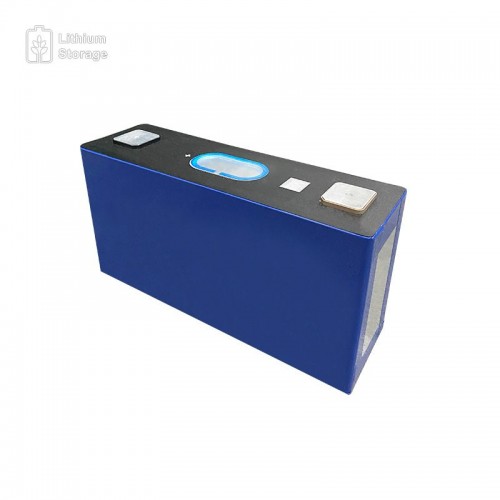

     NCM66220102-243Ah Lithium Ion Battery          prismatic ternary lithium battery      prismatic li ion battery



    NCM66220102-243Ah is prismatic ternary lithium battery (NCM) and is designed to conform to MEB dimension standard. The battery energy density of NCM79148102-177Ah can reach 240Wh/kg. This product has been widely applied for passenger vehicles and vehicles that require high energy density.



    Lfp Prismatic Cells Description

    No.

    Item

    Specification

    Note

    1

    Rated Capacity

    243Ah

    @1C

    2

    Nominal Voltage

    3.66V



    3

    Actual Voltage Range

    2.8-4.35V



    4

    Rated Discharge Current

    ≤486A

    2C@10min

    5

    Peak Discharge Current

    ≤500A

    @30s

    6

    Rated Charge Current

    ≤292A

    1.2C

    7

    Peak Charge Current

    ≤486A

    2C@10s

    8

    Operating Temperature

    Charge: -20℃~55℃
    Discharge: -30℃~55℃



    9

    Storage Temperature

    -30℃~55℃



    10

    Cell Dimensions

    Thickness: 66.72±0.3mm

    Length: 220.66±0.3mm

    Height: 113.91±0.3mm



    11

    Cathode Material

    NCM 523



    12

    Weight

    3.85±0.05kg



    13

    Energy density

    240Wh/kg (1/3C )

    570Wh/L (1/3C)



    14

    Cycle life

    ≥1500 times

    @0.5C/0.5C 100%DOD

    15

    Terminal

    Welding/Screw terminal-Nut





    Technique Advantages

    01. SCL die-cutting Technology

    Further improve battery safety performance than traditional craft and increase the battery energy density by the scale utilization of positive plate

    02. Self-balance Technology

    Improve the consistency and maintainability of the batteries in the system and prolong the cycle-life

    03. Independent Structural Design

    Increase battery capacity and energy by reducing the weight of top cap



    Applications of prismatic ternary lithium battery

    Lithium battery products can be applied in trucks, cars, buses, forklifts as driving force and various energy storage systems.



    LITHIUM STORAGE is a lithium technology provider. LITHIUM STORAGE focuses on to deliver lithium ion battery, lithium ion battery module and lithium based battery system with BMS and control units for both electric mobility and energy storage system application, including standard products and customized products.
